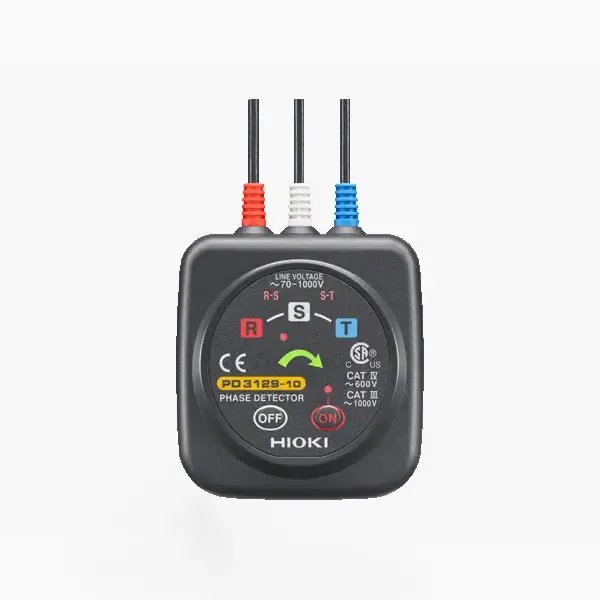

Hioki PD3129 Phase Detector
0.00 AED
In stock
Product Details
Brand:
Hioki
Dimension:
70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D
Hioki PD3129 Phase Detector
Hioki PD3129 emphasizes efficiency and safety in on-site electrical tasks during the renovations and expansions of manufacturing plants and buildings. This non-contact voltage detection and measurement technology is designed to safeguard customers.
Specifically, the PD3129, a non-contact phase rotation meter, identifies the phase of electrical current flow within insulated wires without the need for metallic contact voltage clips. A green arrow denotes the normal phase, offering a visual indicator that proves beneficial for documenting the accurate completion of electrical work in visual reports.
Hioki PD3129 Features
- Simply clip clamps onto wire insulation
- Green LED arrow clearly shows phase direction, perfect for visual reports
- Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
- Intermittent beeps signal positive phase; continuous tone signals reverse phase
- Magnetic base allows the instrument to be secured on a distribution panel
Hioki PD 3129 Specifications
| Functions | Phase detection (positive and negative) | |||||
|---|---|---|---|---|---|---|
| Voltage detection method | Static induction | |||||
| Voltage range | 70 to 600 V AC (50/60 Hz) (sine wave,continuous input) | |||||
| Frequency range | 45 Hz to 66 Hz | |||||
| Object to be connected | 2.4 mm (0.09 in) to 17 mm (0.67 in) of insulated wiring | |||||
| Display | Phase detection :Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously |
|||||
| Battery check function | Power ON lamp: lights up (Power ON), blinks (Battery LOW) | |||||
| Auto power off | Auto shut off if no activity is detected after power is turned ON for 15 minutes | |||||
| Power supply | R6P (AA) manganese battery ×2, Continuous use: 70 hr | |||||
| Dimensions and mass | 70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D, 200 g (7.1 oz), Cord length : 0.7 m (2.30 ft) | |||||
| Included accessories | Carrying case ×1, Strap ×1, Spiral tube ×1, Instruction manual ×1, R6P (AA) manganese battery ×2 | |||||
