Kyoritsu 1021R Multimeter

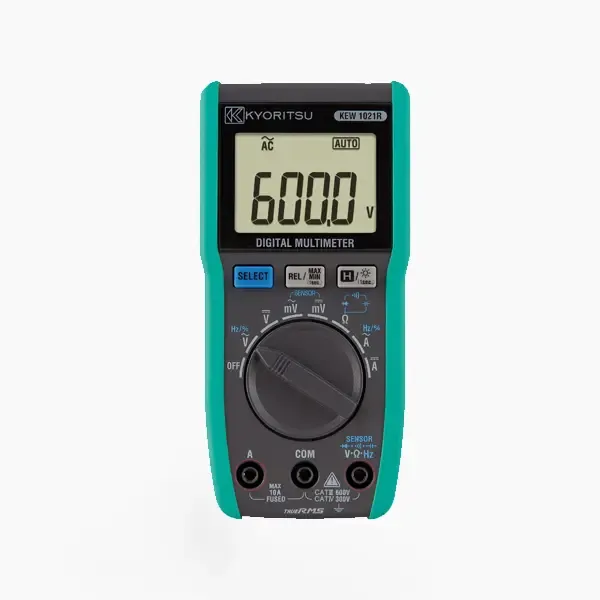

Kyoritsu 1021R Digital Multimeter
The Kyoritsu 1021R Digital Multimeter is a complex yet user-friendly instrument that can meet a variety of electrical measuring requirements. This multimeter, housed in an attractive and simple-to-use cabinet, combines style and function. Its wide display, with an astonishing 6000 counts and a handy backlight, allows you to read measurements even in low-light conditions.
One of the Kyoritsu 1021R's noteworthy characteristics is its improved current measuring capability, which may be improved further by using an external clamp sensor. Because of its adaptability, it is an excellent choice for electricians, technicians, and engineers.
When it comes to measuring precision, the Kyoritsu 1021R delivers. Its True RMS feature ensures that your measurements are not only reliable but also very precise, which is especially important for non-sinusoidal waveforms and irregular signals.
Kyoritsu 1021R Key Features
- Accurate reading with True RMS
- Large display with 6000 counts and Backlight
- MIN/MAX function
- Rugged and reliable
- Enhanced current measuring function using an external clamp sensor
- Sensor mode (with clamp sensor)
- Ergonomic design
- Safety Standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V
Kyoritsu 1021R Specifications
| Feature | Details |
| DC Voltage | 6.000/60.00/600.0V |
| DC mV | 600.0mV |
| DC Clamp Sensor | 60.00/200.0A |
| AC Voltage | 6.000/60.00/600.0V |
| AC mV | 600.0mV |
| AC Clamp Sensor | 60.00/200.0A (auto range) |
| DC Current | 6.000/10.00A (auto range) |
| AC Current | 6.000/10.00A (auto range) |
| Resistance | 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (auto range) |
| Capacitance | 60.00/600.0nF/6.000/60.00/600.0/1000µF |
| Dimensions (L x W x D) | 155 × 75 × 40 mm |
| Weight | 250g Approx. (including batteries) |
