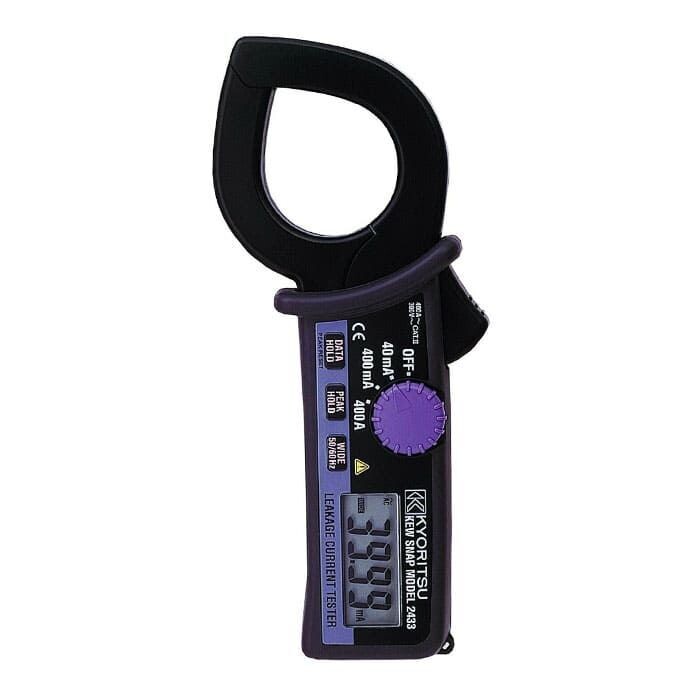

Kyoritsu 2433 Leakage Clamp Meters

Kyoritsu 2433 Leakage Clamp Meters

The Kyoritsu 2433 Leakage Clamp Meter is a specialized instrument designed for professionals engaged in electrical testing and safety assessments. With its advanced features and precise measurement capabilities, this clamp meter is specifically tailored for detecting and measuring leakage currents, contributing to the safety and reliability of electrical installations.

The Kyoritsu 2433 Leakage Clamp Meter is a reliable and efficient tool for professionals prioritizing electrical safety. With its precise leakage current measurement capabilities, clamp-on design, and user-friendly features, this meter plays a crucial role in maintaining the safety and reliability of electrical systems across various applications.

Kyoritsu 2433 Leakage Clamp Meters Applications :

Electrical Safety Audits:

• Ideal for conducting electrical safety audits to identify and measure leakage currents in various electrical installations.

Appliance Testing:

• Suitable for testing and evaluating the leakage currents of appliances, ensuring compliance with safety standards and regulations.

Equipment Inspections:

• Crucial for inspecting the insulation integrity of electrical equipment, identifying potential safety hazards.

Industrial Maintenance:

• Valuable in industrial settings for routine maintenance tasks and troubleshooting electrical systems for safety compliance.

Kyoritsu 2433 Leakage Clamp Meters Key Features :

Leakage Current Measurement:

• The primary function of the Kyoritsu 2433 is to measure leakage currents in electrical circuits. This is essential for identifying unintended currents that may indicate insulation faults or pose safety risks.

Clamp-on Design:

• The clamp-on design allows users to easily and non-intrusively clamp the meter around conductors without the need for direct contact or disconnection. This feature enhances safety and convenience during leakage current measurements.

Wide Range of Measurement:

• The meter typically offers a wide range of measurement capabilities, allowing users to measure leakage currents at various levels. This flexibility ensures accurate readings for different applications and scenarios.

Digital Display:

• Equipped with a digital display, the clamp meter provides clear and precise readings of leakage current values. The digital format enhances visibility and facilitates quick assessments of current levels.

Selectable Ranges:

• The meter often features selectable measurement ranges, enabling users to adjust the meter to the appropriate range based on the specific leakage current being measured. This ensures accuracy across a variety of applications.

Data Hold Function:

• The data hold function allows users to freeze and retain the displayed measurement value. This is particularly useful when recording measurements or working in locations where immediate reading retrieval may be challenging.

Kyoritsu 2433 Leakage Clamp Meters Specifications:

• AC A (50/60Hz): 40/400mA/400A,±1%rdg±5dgt (40/400mA),±1%rdg±5dgt (0 – 350A),±2%rdg (350.1 – 399.9A)
• AC A (WIDE): 40/400mA/400A,±2.5%rdg±10dgt [20Hz – 1kHz] (40/400mA),±2.5%rdg±10dgt [40Hz – 1kHz] (0 – 350A),±5%rdg [40Hz – 1kHz] (350.1 – 399.9A)
• Maximum circuit voltage: 600V AC/DC (between line/neutral)
  300V AC/DC (against Earth)
• Conductor size: Ø40mm max.
• Frequency response: 20Hz – 1kHz (40Hz – 1kHz:400A)
• Effect of External Stray Magnetic Field: 10mA AC approx. in proximity to a 15mm-dia conductor carrying 100A AC
• Safety Standard : IEC 61010-1 CAT III 300V Pollution Degree2,IEC 61010-2-032

• Response Time : Approx. 2 seconds
• Power source :Two R03 or equivalent (DC1.5V) batteries
• Dimensions: 185(L) × 81(W) × 32(D)mm
• Weight: 270g approx.
• Included Accessories :9097 (Carrying Case),R03 (1.5V) × 2,Instruction Manual
