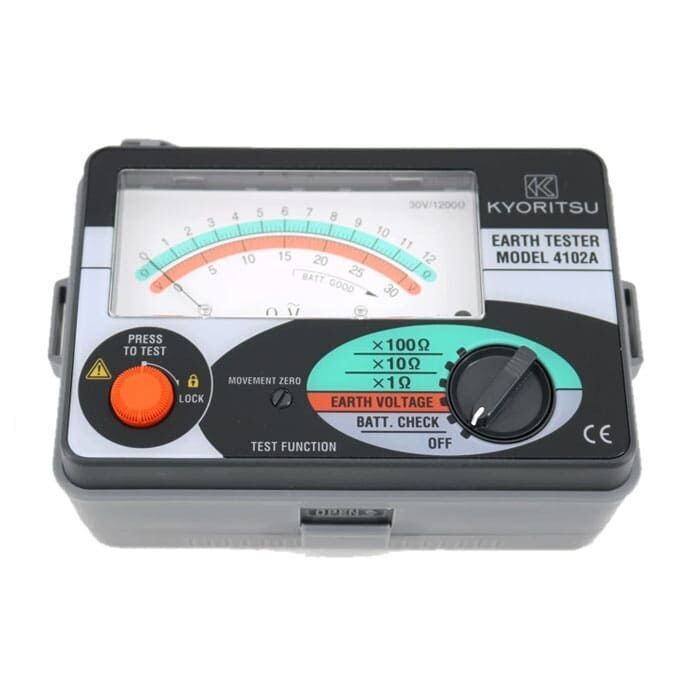

The Kyoritsu 4102A Earth Tester is a specialized instrument designed for professionals engaged in ground resistance testing. With its advanced features and precise measurement capabilities, this tester ensures accurate assessments of the earth/ground resistance in various electrical systems, contributing to enhanced electrical safety.

The Kyoritsu 4102A Earth Tester is a reliable tool for professionals requiring accurate ground resistance measurements. With its advanced features, digital display, and safety functions, this tester provides a convenient and efficient solution for ensuring the effectiveness of grounding systems and enhancing overall electrical safety.

Kyoritsu 4102A Earth Tester Applications :

Electrical Installations:

• Ideal for testing the effectiveness of grounding systems in electrical installations to ensure compliance with safety standards.

Construction Projects:

• Valuable for assessing ground resistance in construction projects to ensure the safety of electrical systems and equipment.

Telecommunication Sites:

• Used in the telecommunications industry for evaluating the quality of grounding at communication sites.

Utility Substations:

• Essential for testing ground resistance in utility substations to maintain the integrity of the electrical infrastructure.

Kyoritsu 4102A Earth Tester Key Features :

Ground Resistance Measurement:

• The primary function of the Kyoritsu 4102A is to measure ground resistance in electrical systems. This is essential for ensuring the effectiveness of grounding installations and preventing electrical hazards.

3-Terminal Earth Resistance Measurement:

• The tester typically employs a three-terminal measurement method for assessing earth resistance. This method provides accurate results by considering the resistance between the earth electrode, auxiliary electrode, and current-carrying electrode.

4-Terminal Soil Resistivity Measurement:

• Some models may include a four-terminal method for measuring soil resistivity. This allows users to evaluate the resistivity of the soil in which the grounding system is installed.

Digital Display:

• Equipped with a digital display, the tester provides clear and precise readings of ground resistance values. The digital format enhances visibility and facilitates quick assessments.

Auto-Ranging:

• The auto-ranging feature allows the tester to automatically select the appropriate measurement range based on the ground resistance being tested. This simplifies the testing process and ensures accurate results.

Data Hold Function:

• The data hold function allows users to freeze and retain the displayed measurement value. This is useful when recording measurements or working in locations where immediate reading retrieval may be challenging.

Alarm Function:

• Some models may include an alarm function that alerts users when the measured ground resistance exceeds a predetermined threshold. This feature enhances the ability to quickly identify potential safety risks.

Kyoritsu 4102A Earth Tester Specifications:

• Earth resistance measurement: × 1ΩRange × 10Ω × 100Ω
• Measuring range :0 - 12Ω 0 - 120Ω 0 - 1200Ω
• Accuracy :±3% of full scale

• Measuring range: 0 - 30 V AC (50,60Hz)
• Accuracy: ±3% of full scale
• Overload protection Earth resistance : 276V AC/DC (10 seconds)
• Earth voltage : 276V AC/DC (10 seconds)
• Applicable Standards IEC 61010-1 CAT Ⅲ300 V Pollution degree 2, IEC 61010-2-030, IEC 61557-1, -5, IEC 60529 (IP54)

• Power source: R6(AA)(1.5V) × 6
• Dimensions: 105(L) × 158(W) × 70(D) mm (including case lid)
• Weight :Approx. 600g (including batteries and case lid)
• Accessories :7095A (Earth resistance test leads [red-20m, yellow-10m, green-5m/1set]), 7127B (Simplified measurement probe), 8032 (Auxiliary earth spikes[2 spikes/1set]), 9121(shoulder strap), 9084 (Soft case), R6 (AA) × 6, Instruction manual

• Optional :7245A (Precision measurement cord set), 8259 (Adapter for measurement terminal), 9164 (Hard case)
