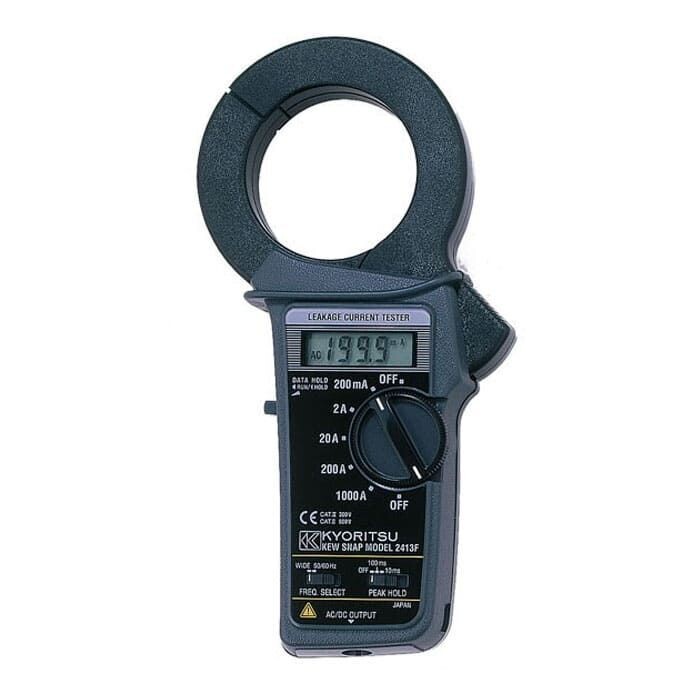

Kyoritsu KEW 2413F Leakage Clamp Meter

Kyoritsu KEW 2413F Leakage Clamp Meter

The Kyoritsu KEW 2413F Leakage Clamp Meter is a specialized instrument designed for professionals engaged in identifying and measuring electrical leaks within various systems. With its advanced features and precision, this clamp meter ensures accurate detection and measurement of leakage currents for enhanced safety and preventive maintenance.

The Kyoritsu KEW 2413F Leakage Clamp Meter is an indispensable tool for professionals requiring precise measurement of leakage currents. Its high sensitivity, True RMS capabilities, and user-friendly features make it an essential instrument for various applications in the electrical industry. By efficiently detecting and measuring leakage currents, the KEW 2413F contributes to the overall safety and reliability of electrical systems and equipment.

Kyoritsu KEW 2413F Leakage Clamp Meter Applications :

Electrical Safety Inspections:

• Ideal for electrical safety inspections to identify and address potential leakage faults in electrical systems, preventing hazards and ensuring compliance with safety standards.

Equipment Testing:

• Applicable for testing the integrity of insulation and identifying leakage currents in electrical equipment and appliances, ensuring they meet safety standards.

Building Wiring Checks:

• Useful for checking the integrity of building wiring systems, identifying potential faults that could compromise electrical safety.

Industrial Maintenance:

• Valuable in industrial maintenance tasks where detecting and measuring leakage currents is critical for preventing electrical hazards and ensuring the reliability of equipment.

Kyoritsu KEW 2413F Leakage Clamp Meter Key Features :

Leakage Current Measurement:

• The primary function of the KEW 2413F is to measure leakage currents accurately. This is essential for identifying potential faults, ensuring safety, and preventing electrical hazards.

High Sensitivity:

• Engineered with high sensitivity, the clamp meter can detect even low levels of leakage current. This ensures that the instrument can effectively identify and measure subtle faults in electrical systems.

True RMS Measurement:

• Featuring True RMS (Root Mean Square) measurement capabilities, the meter provides accurate readings for both sinusoidal and non-sinusoidal waveforms. This is essential for precise measurements in various electrical environments.

Selectable Current Ranges:

• The meter offers selectable current ranges, allowing users to choose the appropriate range for the specific application. This flexibility ensures accurate measurements across different scenarios.

Auto Discharge Function:

• After completing a test, the auto discharge function ensures the safe discharge of residual voltage, minimizing the risk to the operator and the equipment being tested.

Backlit Display:

• Equipped with a backlit display, the meter ensures visibility in low-light conditions, providing enhanced usability in various work environments.

Kyoritsu KEW 2413F Leakage Clamp Meter Specifications :

• AC A (50/60Hz): 200mA/2/20/200A/1000A

±1.5%rdg±2dgt (200mA/2/20A)

±2%rdg±2dgt (200A 0 – 500A)

±5.5%rdg (501 – 1000A)

• AC A (WIDE): 200mA/2/20/200/1000A
  ±1%rdg±2dgt [50/60Hz],
  ±3%rdg±2dgt [40Hz – 1kHz] (200mA/2/20A)
  ±1.5%rdg±2dgt [50/60Hz],
  ±3.5%rdg±2dgt [40Hz – 1kHz] (200A/0 – 500A)
  ±5%rdg [50/60Hz],
  ±10%rdg [40Hz – 1kHz] (501 – 1000A)
• Conductor size: Ø68mm max.
• Frequency response: 40Hz – 1kHz
• Output: Waveform :
  AC200mV against the maximum value of each range (1000A range is 100mV)
  Recorder :
  DC200mV against the maximum value of each range (1000A range is 100mV)
• Applicable standards: IEC 61010-1 CAT III 300V
  IEC 61010-2-032
• Power source : 6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours
• Dimensions : 250(L) × 130(W) × 50(D)mm
• Weight : 570g approx.
