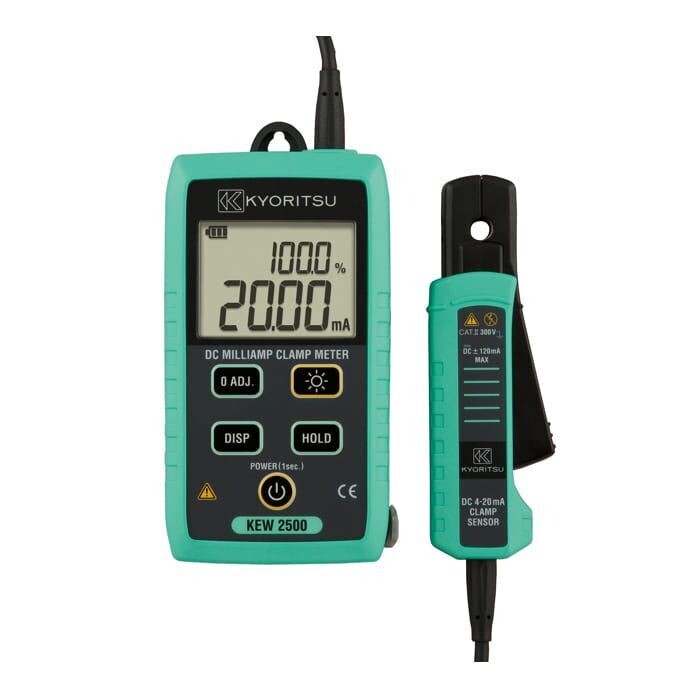

Kyoritsu KEW 2500 DC Milliamp Clamp Meter

Kyoritsu KEW 2500 DC Milliamp Clamp Meter

The Kyoritsu KEW 2500 DC Milliamp Clamp Meter is a specialized instrument designed for professionals involved in low-current measurement applications. With its precise measurement capabilities and compact design, this clamp meter is ideal for tasks that require accurate readings of DC milliamp currents.

The Kyoritsu KEW 2500 DC Milliamp Clamp Meter is a reliable tool for professionals working in applications that demand accurate measurement of low DC milliamp currents. With its compact design, non-intrusive clamping capabilities, and essential features, this clamp meter is a valuable instrument for tasks in control systems, sensor testing, and electronic component troubleshooting.

Kyoritsu KEW 2500 Applications

Control Systems and PLCs:

• Ideal for measuring DC milliamp currents in control systems, programmable logic controllers (PLCs), and industrial automation applications.

Sensor Testing:

• Suitable for testing and calibrating sensors that operate on low DC milliamp currents.

Electronic Component Testing:

• Valuable for measuring and troubleshooting electronic components, such as transistors and integrated circuits.

Field Service:

• Useful for technicians and engineers performing on-site service and maintenance tasks that involve low-current measurements.

Kyoritsu KEW 2500 Key Features

DC Milliamp Current Measurement:

• The primary function of the KEW 2500 is to measure DC milliamp currents in circuits. This is crucial for applications where low-current measurements are required, such as control systems, sensors, and electronic components.

Compact and Portable:

• The compact and portable design of the clamp meter makes it easy to carry and maneuver in confined spaces. This is especially useful when working on intricate electronic circuits and control panels.

Jaw Opening and Clamping Design:

• The meter features a jaw opening that allows users to clamp around conductors without the need for direct contact or disconnection. This non-intrusive design simplifies the measurement process and reduces the risk of circuit disruption.

Selectable Measurement Ranges:

• The KEW 2500 typically offers selectable measurement ranges, allowing users to adjust the meter to the appropriate range for the specific DC milliamp current being measured. This flexibility ensures accurate readings.

Auto Power Off:

• To conserve battery life, the auto power-off feature automatically turns off the meter after a period of inactivity. This helps extend the life of the batteries, ensuring the meter is ready for use when needed.

Data Hold Function:

• The data hold function allows users to freeze and retain the displayed measurement value. This is particularly useful when recording measurements or working in locations where immediate reading retrieval may be challenging.

Related Products

• Kyoritsu 2010
• Kyoritsu 2033

Kyoritsu KEW 2500 Specifications

Feature	Description
DC A	20/100mA (Auto ranging)
Conductor Size	Ø6mm max.
Analog Output	Recorder; DC 1000mV against DC 100mA
Operating Temperature & Humidity Range	-10 – +50ºC < 85%
Storage Temperature & Humidity Range	-20 – +60ºC < 85%
Power Source	R6/LR6 (AA) (1.5V) × 4
Dimensions	111(L) × 61(W) × 40(D)mm (Display unit) 104(L) × 34(W) × 20(D)mm (Sensor) 700mm (Sensor cable)
Weight	Approx. 290g (including batteries)
Included Accessories	9096 (Carrying case), LR6 (AA) × 4, Instruction Manual
Optional Accessories	7256 (Output cord)
