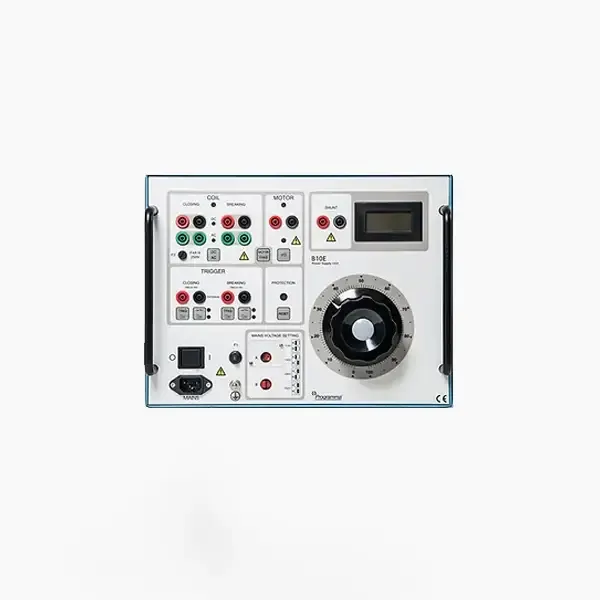

Megger B10E Trip Coil Tester
0.00 AED
In stock
Product Details
Brand:
megger
weight:
20.8 kg
dimension:
Instrument: 35 x 27 x 22 cm
Display :
LED
Applicable standards:
IEC 62271-100, ANSI C37.09
Operating temperature & humidity range:
0 to 50°C (32 to 122°F)
Voltage range[RMS] :
115 / 230 V AC, 50/60Hz
MEGGER B10E
The Megger B10E is a versatile AC/DC voltage power supply specifically engineered for testing circuit breaker coils and associated components in substations and industrial settings. This portable device is essential for ensuring the proper functioning of medium and high-voltage circuit breakers, making it a valuable tool for electrical engineers and technicians.
Key Features
- Variable Voltage Output: The B10E can generate continuously variable AC and DC voltages ranging from 24V to 250V. This flexibility allows users to test various circuit breaker functions, including trip coils, close coils, and spring-charging motors.
- Dedicated Outputs: The device features separate outputs designed for specific applications, such as trip coil testing and spring charging. This specialization ensures that the correct voltage levels are applied during testing, closely mimicking normal operating conditions.
- User-Friendly Design: The control panel is intuitively laid out, making it easy for users to operate the device effectively. The straightforward interface allows for quick adjustments and monitoring during tests.
- Robust and Portable: Designed with portability in mind, the Megger B10E includes a built-in carrying handle and comes with a high-quality transport case. This makes it easy to transport to various job sites while ensuring durability against environmental factors.
- Safety Features: To protect both the user and the equipment, the B10E is equipped with thermal cutouts, overload protection, and time-limit cutouts. These safety mechanisms help prevent damage during operation.
- Compatibility with Breaker Analyzers: The B10E can be used in conjunction with circuit breaker analyzers to enhance testing efficiency. This capability allows for comprehensive testing sequences that ensure circuit breaker reliability.
Applications
The Megger B10E is widely used in several applications:
- Circuit Breaker Testing: It is primarily utilized for testing high-voltage circuit breakers to ensure they function correctly under operational conditions.
- Field Service Maintenance: Electrical maintenance teams rely on the B10E for field service applications, allowing them to verify the performance of circuit breakers during installation or routine checks.
- Preventive Maintenance Programs: The device supports preventive maintenance initiatives by enabling technicians to assess the condition of circuit breakers regularly, helping to avoid unexpected failures.
In summary, the Megger B10E Trip Coil Tester is an essential tool for professionals involved in the maintenance and testing of high-voltage circuit breakers. Its combination of variable voltage output, user-friendly design, and robust construction makes it a reliable choice for ensuring the safety and performance of electrical installations.
MEGGER B10E Specifications
| Environment | |
| Application field | Medium and high-voltage substations / industrial environments |
| Operating temperature | 0 to 50°C (32 to 122°F) |
| Storage | -40 to +70°C (-40 to +158°F). |
| Humidity | 5% to 95% RH, non-condensing |
| CE-Marking | |
| LVD | 2006/95/EC |
| EMC | 2004/108/EC |
| General | |
| Mains voltage | 115 / 230 V AC, 50/60Hz |
| Power consumption | 3300W |
| Protection | Thermal cut-outs, +80°C |
| Short-circuit protectors at DC outputs | |
| Display | LED |
| Measurement Section | |
| Voltmeter - digital | |
| Range | 0 – 300 V DC, 0 – 300 V AC |
| Resolution | 1 V |
| Inaccuracy | ±1% of displayed value, DC |
| ±2.5% of displayed value, AC | |
| Current shunt | 5 A / 50 mV ±0.5% (built-in) |
| Test Lead Set, with 4mm Stackable Safety Plugs | 2 x 0.25 m (0.8ft), 2.5 mm² |
| 2 x 0.5 m (1.6ft), 2.5 mm² | |
| 8 x 2 m (6.6ft), 2.5 mm² | |
| Dimensions | Instrument: 35 x 27 x 22 cm |
| Transport case: 61 x 29 x 36 cm | |
| Weight | 20.8 kg |
| 29.3 kg with accessories; transport case | |
| Megger B10E warranty | 1 year |
