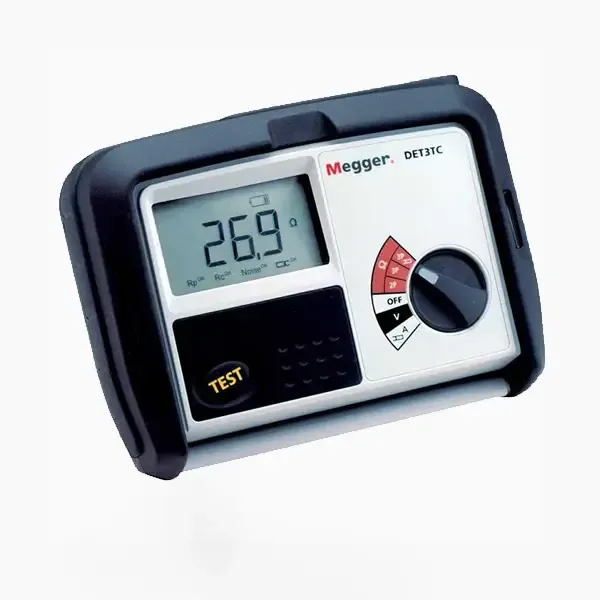

Megger DET3TC Earth Resistance Tester
Introduction of Megger DET3TC
You may perform a wide range of earth testing techniques with the Megger DET3TC, including 2-pole, 3-pole, no disconnect testing (ART), resistance, and voltage. The Megger DET3TC automatically checks and shows the attached C and P spikes' state throughout test processes. It also automatically checks for noise and compensates for it by rejecting noise that is between 40V peak to peak. The device can measure earth voltage between 0 and 100 volts AC with an accuracy of 2% of a volt.
To avoid the need to detach, this instrument requires the installation of an optional clamp (separately supplied) around the ground rod connection. A big test button integrated into the device allows for safe and convenient test initiation even when wearing gloves, and a wide rotary dial facilitates easy selection of all test protocols.
Megger DET3TC Key Features
- 2 and 3-point testing
- ART (Attached Rod Technique) testing capability with DET3TC
- Choice of digital or analog display
- Warning indicators prevent test failure
- IP54 rated
- Complete with leads, stakes, and rugged carry case
- Simple one-button operation
- The calibration test certificate included
- Optional earth testing kit (ETK) available
Megger DET3TC Specifications
| Feature | Details |
|---|---|
| Ingress Protection | IP54 |
| C Spike Check | Automatic |
| P Spike Check | Automatic |
| Noise Check | Automatic |
| Noise Rejection | 40V Peak to Peak |
| 2-Wire Test | Yes |
| 3-Wire Test | Yes |
| No Disconnect Testing (ART) | Yes, requires optional ICLAMP |
| Earth Current Range with ICLAMP | 0.5mA to 19.9A |
| Earth Current Accuracy | 5% ±3 digits |
| Resistance Range | 0.01 to 2000Ω |
| Maximum Probe Resistance | Rp limit: 100kΩ (50V output voltage) Rc limit: 100kΩ (50V output voltage) Limits reduced to 50kΩ for 25V output voltage Limits reduced to 5kΩ for 0.01Ω resolution on 18Ω range |
| Earth Voltage Range | 0 to 100V AC |
| Earth Voltage Accuracy | 2% ± 2V |
| Battery Type | 8 x AA Cells |
| Operating Temperature Range | -15 to 55°C |
| Storage Temperature Range | -40 to 70°C |
| Safety | IEC 61010-1 CAT IV 100V* EN 61557-1 EN 61557-5 |
