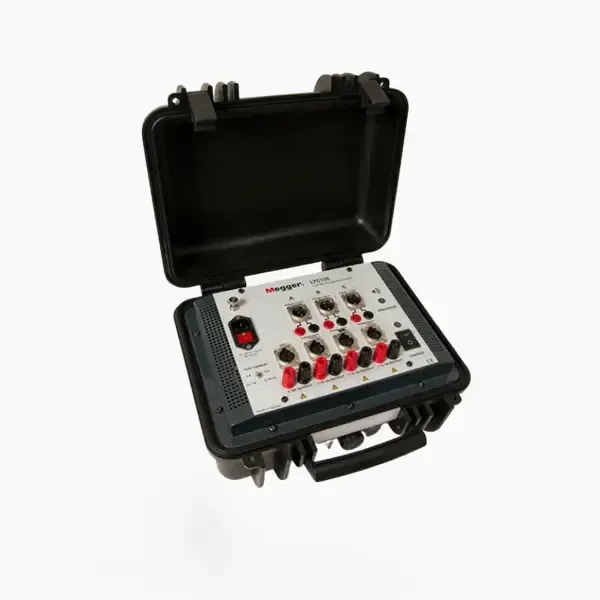

Megger LTC135 Load Tap Changer Testing Power Supply
0.00 AED
In stock
Product Details
Introduction of Megger LTC135
The Megger LTC135 Load Tap Changer Testing Power Supply is a specialized accessory designed for use with circuit breaker analyzers. It provides the necessary test currents for conducting various measurements on load tap changers.
Compatible with multiple Megger instruments such as the EGIL, TM1600/MA61, TM1700 series, and TM1800 models, the LTC135 is perfect for performing dynamic measurements on load tap changers. Additionally, it can manage winding resistance measurements and other applications that require a stable DC current test signal .
Megger LTC135 Key Features
- Winding Resistance Measurement
- Dynamic Resistance Measurement
- Switch sequence timing
- Transition/resistor measurement
Megger LTC135 Specifications
| SPECIFICATION CATEGORY | DETAILS |
|---|---|
| General Conditions | Specifications valid at ambient temperature of +25°C (77°F). Changes to specifications without notice are possible. |
| Environment | High-voltage substations and industrial environments. |
| Temperature | Operation: -20ºC to +65°C (-4°F to +149°F) Storage: -40ºC to +85ºC (-40°F to +185°F) |
| Relative Humidity | 5%-95%, non-condensing |
| Compliance | EMC 2004/108/EC, LVD 2006/95/EC |
| General Specifications | Mains voltage: 100-250 V AC, 50/60 Hz Power consumption: 300 W (max) Dimensions: 360 x 195 x 300 mm (14.2 x 7.7 x 11.8 in.) Weight: 6.5 kg (14.3 lbs) instrument only, 10.9 kg (24 lbs) with accessories and carrying case |
| Outputs | Output current: 3 x 0.1 A, 3 x 1 A, 1 x 5 A Open circuit voltage: 48 V Output impedance: 480 Ω, 48 Ω, 9.6 Ω Shunt output: 1 V/0.1 A, 1 V/1 A, 1 V/5 A Shunt inaccuracy: 0.1% |
| Measurement Range | EGIL and TM1600 (4 V): 0 – 44 Ω, 0 – 4.4 Ω, 0 – 850 mΩ TM1700/1800 (15 V): 0 – 200 Ω, 0 – 20 Ω, 0 – 4 Ω |
