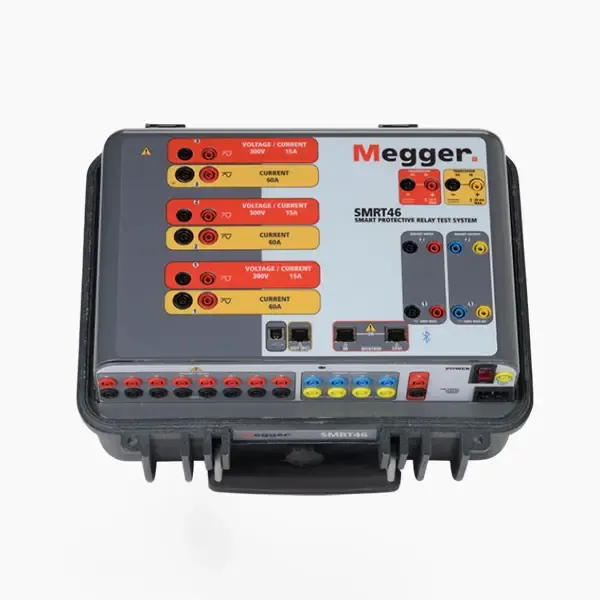

Megger SMRT46 Multi-phase Relay Tester
0.00 AED
In stock
Product Details
Brand:
Megger
Current Range:
AC: 5A, 15A, 60A, DC: 32A
Timer range:
0.0001s to 99999.9s
Current outputs:
1 to 4 relays, 300V max, Imax: 8 Amps, Response time <10ms
Voltage outputs,:
5 and 6 relays, 400V peak max, Response time <1ms
Operating Temperature:
32 to 122°F (0 to 50°C)
Storage Temperature:
-40 to 158°F (-40 to 70°C)
Dimentions:
13.25 W x 6.75 H x 10.75 D in. (337 W x 172 H x 273 D mm)
Weight:
29.35 lb (13.2 kg) for a three-phase test system
Protection:
EN 61326-2-1, EN 61000-3-2/3, FCC Subpart B of Part 15 Class A, EN 61000-4-2/3/4/5/6/8/11
Megger Smrt46
The Megger SMRT46 Multi-Phase Relay Tester is a cutting-edge, lightweight, and portable testing solution designed for the comprehensive evaluation of protective relays. This versatile device is ideal for professionals in the electrical industry, offering high power output and advanced testing capabilities to ensure the reliability and performance of various relay types.
Key Features
- High Power Output: The SMRT46 delivers up to 60 Amps at 300 VA per phase, making it suitable for testing a wide range of electro-mechanical, solid-state, and microprocessor-based protective relays.
- Multiple Testing Channels: With four voltage channels and three current channels, the tester can be configured for a variety of testing scenarios, including three-phase testing with convertible voltage channels.
- Smart Touch View Interface (STVI): The intuitive STVI handheld controller features a large, high-resolution color touchscreen, allowing users to perform manual, steady-state, and dynamic tests with ease. The interface simplifies operation, reducing the need for a computer during testing.
- Dynamic and Transient Testing: The SMRT46 supports dynamic, transient, and GPS satellite-synchronized end-to-end testing, which is crucial for modern relay applications.
- Advanced Software Integration: The device can be controlled via Megger's Advanced Visual Test Software (AVTS), compatible with Microsoft Windows, providing comprehensive management of protective relay testing.
- Robust Design: Built for field use, the SMRT46 is rugged and lightweight, ensuring durability and ease of transport. Its design is optimized for use in demanding environments.
- Customizable Testing: Users can customize the system by adding VIGEN modules for specific test applications, enhancing its versatility for various relay types.
Applications
- Protective Relay Testing: Ensuring the operational integrity of protective relays in substations and industrial plants.
- Motor Overload Relay Testing: Evaluating the performance of motor protection devices.
- Commissioning and Maintenance: Facilitating the commissioning of new installations and ongoing maintenance checks.
The Megger SMRT46 Multi-Phase Relay Tester stands out as a powerful and user-friendly solution for professionals tasked with ensuring the reliability of electrical systems. Its combination of high power output, intuitive operation, and advanced testing capabilities makes it an essential tool in the field of electrical maintenance and testing. By integrating the SMRT46 into your operations, you can enhance the safety and performance of your electrical installations.
Megger Smrt46 Specifications
| Parameter | Range/Details | Power | Max I |
| AC/DC AUX Voltage Channel | |||
| - Ranges (AC) | 30 Volts, 150 Volts | 100 Watts, 100 VA | 3.33 A, 0.67 A |
| - Ranges (DC) | 30 Volts, 250 Volts | 100 Watts, 100 Watts | 3.33 A, 0.4 A |
| Phase Angle | 0.00 to 359.99 degrees (Clockwise, Counter-Clockwise, ±180.00 degrees) | |
| - Accuracy | ±0.02° typical, ±0.25° max at 50/60 Hz | |
| Frequency | 0.001 to 1000.000 Hz | |
| - Accuracy | ±2.5 ppm typical, ±5.0 ppm max at 50/60 Hz, 25°C to 50°C | |
| Metering | AC/DC Amperes, AC/DC Volts, Frequency, Phase, Power Factor, etc. | |
| AC Voltage Amplitude | 30V, 150V, 300V | RMS |
| - Accuracy | ±0.05% reading, ±0.15% reading ±0.05% range max, 0.25% max | |
| AC Current Amplitude | 5A, 15A, 60A | RMS |
| - Accuracy | ±0.05% reading, ±0.02% typical | |
| DC Current Amplitude | 32A | |
| - Accuracy | ±0.05% reading, ±0.02% typical | |
| Convertibility to AC Current | 5A, 15A | RMS |
| Total Harmonic Distortion | <0.1% typical, 2% max at 50/60 Hz | |
| Timer | 0.0001s to 99999.9s | |
| Binary Input | Up to 10 inputs | 300V AC/DC |
| Binary Output Relays | Up to 6 independent, galvanically isolated relays | |
| High Current Output Relays | 1 to 4 relays, 300V max, Imax: 8 Amps, Response time <10ms | 2000 VA max |
| High Speed Output Relays | 5 and 6 relays, 400V peak max, Response time <1ms |
| Environmental | |
| Operating Temperature: | 32 to 122° F (0 to 50° C) |
| Storage Temperature: | -40 to 158° F (-40 to 70° C) |
| Relative Humidity: | 5 - 95% RH, Non-condensing |
| Environmental Specifications | |
| Parameter | Details |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Relative Humidity | 5 - 95% RH, Non-condensing |
| Conformance Standards | |
| Parameter | Standards |
| Safety | EN 61010-1 |
| Shock | EN/IEC 60068-2-27 |
| Vibration | EN/IEC 68-2-6 |
| Transit Drop | ISTA 1A |
| Free Fall | EN/IEC 60068-2-32 |
| Drop / Topple | EN/IEC 60068-2-31 |
| Electromagnetic Compatibility | |
| Parameter | Standards |
| Emissions | EN 61326-2-1, EN 61000-3-2/3, FCC Subpart B of Part 15 Class A |
| Immunity | EN 61000-4-2/3/4/5/6/8/11 |
| Weight and Dimensions | |
| Parameter | Details |
| Weight | 29.35 lb (13.2 kg) for a three-phase test system |
| Dimensions | 13.25 W x 6.75 H x 10.75 D in. (337 W x 172 H x 273 D mm) |
