Product Details

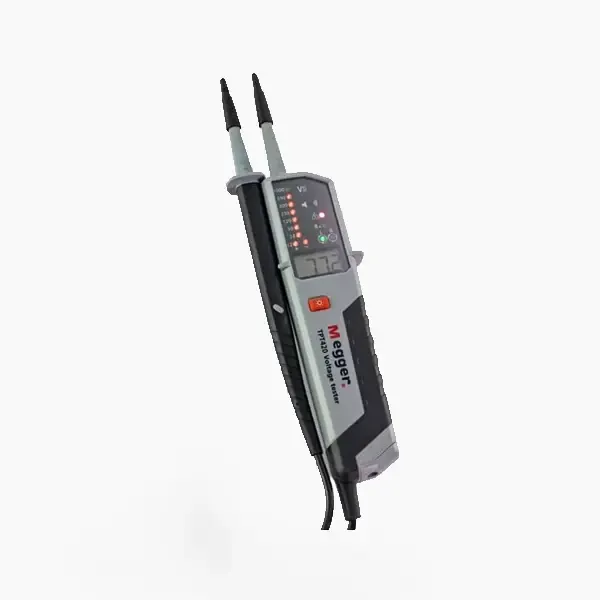

Megger TPT420 Voltage Tester

The Megger TPT420 voltage tester is designed to offer electricians and electrical engineers a user-friendly voltage-indicating instrument. It ensures safety by warning the operator of dangerous test voltages even when the batteries are depleted. Featuring both LCD and LED displays, the TPT420 measures AC voltages from 12 to 1000 V and DC voltages up to 1500 V. Additionally, it includes a continuity function within the range of 0 to 500 kΩ. For enhanced safety, continuity and voltage measurements are accompanied by an acoustic sounder.

Megger TPT420 Key Features

  • CAT IV/1000 V
  • IP64 Rated
  • 12 – 1000 V AC
  • 12 – 1500 V DC
  • Continuity test function with visual and acoustic indication
  • Voltage indication with no batteries
  • Single pole voltage test
  • Phase rotation indication
  • Integrated torch light

Megger TPT420 Specifications

Parameter Details
Display 13 LEDs, 4 Digit LCD (0.1V Resolution)
Voltage Range LED: ±12, 24, 50, 120, 230, 400, 690, 1000 V
LCD: 12 – 1000 V AC / 1500 V DC
Voltage Warning Indication LED: <50 VAC, <120 VDC
Backlight Automatic
Polarity Indication Automatic
Frequency Range 40 – 400 Hz
Peak Current Is<3.5 mA (@1000 V)
Single Pole Test 100 – 1000 V AC (50/60 Hz)
Phase Rotation 120 – 400 V Phase to phase, AC 50/60 Hz
Continuity Indication >500 kΩ + 50%
