Met One BC1054 Black Carbon Analyzer
0.00 AED
In stock
Product Details

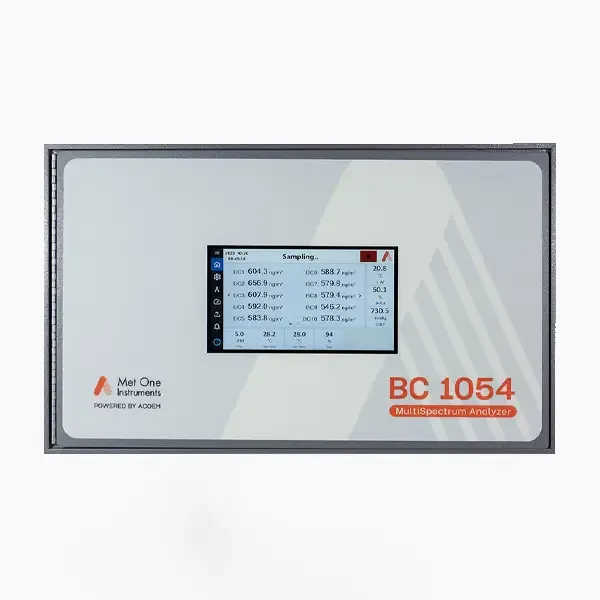

Met One BC1054 Black Carbon Analyzer
The Met One BC1054 Multi-spectrum Black Carbon Analyzer by Met One Instruments, powered by Acoem, continuously monitors the light transmittance through filter media where particulate matter gathers. It calculates the black-carbon (BC) concentrations in real-time across 10 different wavelengths, spanning from near-UV to near-IR.
Utilizing the same widely accepted calibration constants and operational principles as industry-standard reference monitors, the BC-1054 delivers black carbon (BC) data with equivalent accuracy and precision, but at a significantly lower cost.
Met One BC1054 Key Features
- Active flow control at either 2 LPM or 5 LPM
- Built-in filter loading correction algorithm
- Internal flash storage of greater than one year's worth of data
- Advanced diagnostics for flow, optics, and tape drive operation
- Ultra-high sensitivity with lower limits of detection less than 1 ng/m3
- Factory calibrated with smoke chamber methodology utilized on
- Met One's time-tested beta attenuation mass (BAM) monitors
Met One BC1054 Specifications
| Parameter | Specification |
|---|---|
| Measurement Principle | Filter-Based Multiple Wavelength Optical Absorption. |
| Illumination Wavelengths | 370, 430, 470, 525, 565, 590, 660, 700, 880, and 950 nm. |
| Measurement Range | <1 ng/m3 to >100,000 ng/m3 (effective). |
| Display Resolution | 0.1 ng/m3. |
| Limit of Detection | <8 ng/m3 with 1 minute resolution; <1 ng/m3 with 1 hour resolution. |
| Measurement Interval | 1 minute, standard. (5, 10, 15, 30, or 60 minute selectable intervals.) |
| Flow Rate | 2 or 5 LPM standard, user selectable, volumetric flow controlled and reported under actual conditions. |
| Filter Tape | Proprietary reinforced glass fiber. |
| Power Supply | 12 VDC Universal 100-240 VAC 50/60Hz input; 12 VDC 8.5 A output supply included. |
| Power Consumption | 50 W |
| Pump Type | External AC vacuum pump (115 VAC or 230 VAC power options). |
| Ambient Sensor | Model BX-597A combination AT/BP/RH digital smart sensor included. |
| Additional Sensor Inputs | Support for digital Wind Speed and Wind Direction inputs. |
| Unit Operational Temps | 0˚ to +40˚ C (inside shelter). |
| Outdoor Ambient Temps | -30˚ to +50˚ C |
| Ambient Humidity Range | 0 to 90% RH non-condensing. |
| Humidity Control System | 13 W Inlet Heater (setpoints from 25˚ to 40˚ C). |
| Internal Data Storage | Internal flash memory stores more than 1 year of 1-minute interval data. |
| Data Collection Interface | RS-232 Modem (38,400 baud default), RS-232 Computer (9,600 baud default, user-selectable between 300 - 115,200 baud), USB-B COMM (115,200 baud), Ethernet Serial Port, and USB-A Flash Drive Port for data download. |
| Compatible Software | Met One Comet software and USB driver (free download). |
| User Interface | Color graphic touchscreen display: 4.75” H (11.2 cm) x 6.75” W (17.1 cm). |
| Mounting Options | Bench top or equipment rack mountable. Weatherproof shelter required. |
| Inlet | PM1, PM2.5, PM10 sharp cut cyclones available at either 2 or 5 LPM sampling rates through flexible tubing. |
| Unit Weight | Approximately 40 lbs (18 kg). |
| Unit Dimensions | Height: 10.5” (26.7 cm) Width: 17” (43 cm) Depth: 15.8” (40 cm) |
