NOVOTEST Lab UCI Wireless Hardness Tester
0.00 AED
In stock
Product Details
Brand:
NOVOTEST
Hardness Range:
HRC: 20~70 – HB: 90~650 – HV: 100~750 – Tensile strength MPa: 370~1740
Hardness Scales:
HRC, HB, HV, HRA, HRB, MPA
Impact direction:
Any direction 360°
Indenter:
Diamond indenter (UCI)
Measurement Units:
HRC, HB, HV, HRA, HRB, MPA
Pressure force:
10N/1kgf/2.2 lbf/HV1, 50N/5kgf/11lbf/HV5, 98N/10kgf/22lbf/HV10
Testing Methods:
HRC, HB, HV, HRA, HRB
Dimension:
160x26mm (160x36mm with nozzle)

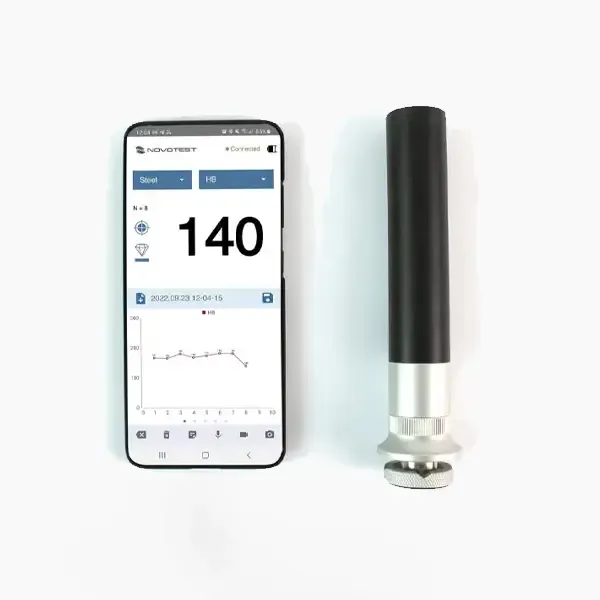

NOVOTEST Lab UCI
The NOVOTEST Lab UCI Wireless Hardness Tester is a cutting-edge device designed for quick and efficient hardness testing using the Ultrasonic Contact Impedance (UCI) method. This portable instrument is particularly advantageous for its versatility and ease of use, making it suitable for both laboratory and field applications.
Key Features
- Ultra-Portability: The NOVOTEST Lab UCI is designed to be lightweight and compact, allowing for easy transportation and use in various environments. Its battery life supports continuous operation for up to 20 hours, making it ideal for extended testing sessions without the need for frequent recharging.
- Versatile Testing Capability: The UCI method employed by this hardness tester is highly adaptable, enabling measurements on a wide range of materials, including thin-walled products and complex shapes. This flexibility makes it suitable for assessing hardness in hard-to-reach areas, such as grooves and welds.
- User-Friendly Interface: The device features an intuitive interface that simplifies the testing process. Users can easily navigate through settings and options, ensuring efficient operation even for those with minimal experience in hardness testing.
- Data Management: The NOVOTEST Lab UCI includes advanced data management capabilities. It allows users to store measurement results directly on the device and synchronize them with a cloud service or a PC. This feature enables easy access to historical data and facilitates comprehensive reporting.
- Minimal Destruction: One of the standout characteristics of the UCI method is its non-destructive nature. The device creates only a small imprint on the test surface, which minimizes material damage and allows for repeated testing on the same sample without significant impact on its integrity.
- Calibration and Accuracy: The device is pre-calibrated for steel but can be adjusted for various materials, ensuring accurate readings across different hardness scales, such as HRC, HB, HV, and MPa. This adaptability enhances its utility in diverse industrial applications.
Applications
The NOVOTEST Lab UCI Wireless Hardness Tester is ideal for numerous applications:
- Quality Control: It plays a crucial role in quality assurance processes within manufacturing environments by verifying that materials meet specified hardness requirements.
- Research and Development: In laboratories, researchers can utilize this device to study material properties and behavior under different conditions.
- Field Testing: Its portability makes it suitable for fieldwork, allowing technicians to conduct hardness tests on-site without needing extensive setup or equipment.
The NOVOTEST Lab UCI Wireless Hardness Tester represents a significant advancement in portable hardness testing technology. Its combination of ultra-portability, versatile measurement capabilities, user-friendly design, and robust data management features make it an invaluable tool across various industries. Whether used in laboratories or field conditions, this device provides reliable and accurate hardness measurements while minimizing material damage, thereby enhancing overall testing efficiency.
NOVOTEST Lab UCI Specifications
| UCI probe types | 10N/1kgf/2.2 lbf/HV1 |
| 50N/5kgf/11lbf/HV5 | |
| 98N/10kgf/22lbf/HV10 | |
| Measuring range | Factory calibrations: |
| – HRC: 20~70 | |
| – HB: 90~650 | |
| – HV: 100~750 | |
| – Tensile strength MPa: 370~1740 | |
| User calibrations for any scale and range (for example: 1-2000HV) | |
| Measuring accuracy | HRC: 2HRC |
| HB: 10HB | |
| HV: 15HV | |
| Standards | ASTM A1038 |
| ASTM E140 | |
| ISO 18265 | |
| DIN50159 | |
| GB/T 34205 | |
| Indenter | Diamond indenter (UCI) |
| Measuring direction | Any direction 360° |
| Data storage | Limited only by the memory card |
| Hardness scale | HRC, HB, HV, HRA, HRB, MPA |
| Additional custom scales for calibration | |
| Materials | Pre-calibrated for Steel, Aluminum, Brass |
| Additional custom materials for calibration | |
| Data display | Load applied/contact (UCI) |
| Single test result | |
| Max, Min, Average of tests | |
| Number of tests | |
| Deviation | |
| Var. coeff. | |
| Histogram | |
| Signal and Smart Mode (Filter of incorrect measurements) | |
| Wireless connection with Android gadgets via NOVOTEST Lab App | Yes |
| PC cable connection | Online – NOVOTEST.INFO/USB-connect |
| Offline – NOVOTEST USB-Connect | |
| Operating environment | Temperature:-30°C~40°C; Humidity: 30%~80%R.H. |
| Power supply/Charging | Built in battery/USB 5V |
| Batteries life | Approx. 10 hours |
| Instrument dimensions | 160x26mm (160x36mm with nozzle) |
| Net weight | Approx. 0.17kg |
| Gross weight (package) | 1.5kg |
| Package dimensions | 33*27*10cm |
| Country of origin | Made in Ukraine (Europe) |
| Warranty | Basic |
| – 12 months | |
| Extended (optional) | |
| – up to 3 years |
