PCE-EMF 20 Electromagnetic Field Meter
0.00 AED
In stock
Product Details
Brand:
PCE
Radiation Range:
1 ... 1999 V/m, 0,01 ... 99,99 µT
Radiation Resolution:
1 V/m, 0,01 µT
Radiation Accuracy :
1 V/m, 0,01 µT
Display type :
LED
Display size :
2,2 Inch
Interface :
USB-C
Response time :
0,5 s
Automatic power-off :
5 min
Bandwidth MF from :
5 Hz
Bandwidth MF to :
3500 MHz
Bandwidth EF from :
5 Hz
Bandwidth EF to :
3500 MHz
Alarm :
Acoustic, optical
Menu language :
English, English (GB)
Protection class (device) :
IP20
Power supply :
5 V
Weight :
75 g
Operating conditions :
0 ... 50 °C , 0 ... 90 % RH
Storage conditions :
0 ... 50 °C , 0 ... 90 % RH
(Rechargeable) battery :
1 x 3,7 V SL 603040 , Lithium-ion battery
Capacity :
700 mAh
Dimensions ( L x W x H ) :
110 x 55 x 23 mm

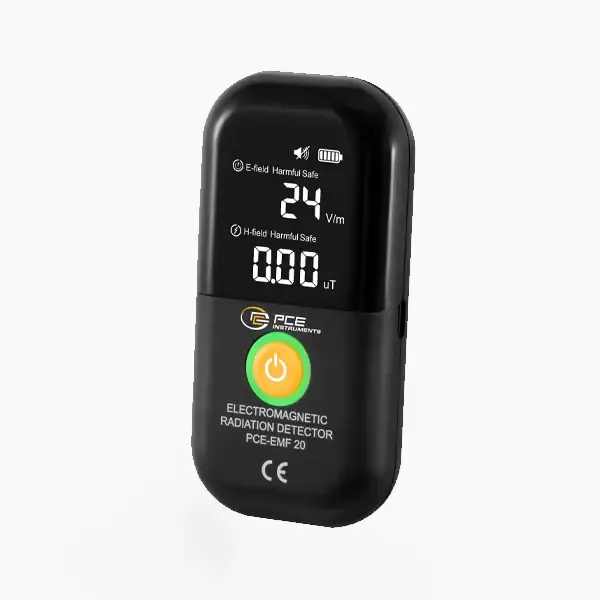

PCE-EMF 20
The PCE-EMF 20 is a portable, handheld electromagnetic field meter designed to detect and measure electromagnetic fields (EMFs) in various environments. This device is particularly useful for assessing the safety of workplaces and ensuring compliance with EMF exposure regulations.
Key Features
- Wide Measurement Range: The PCE-EMF 20 can measure EMF levels from 0 to 199.99 V/m, 0 to 99.999 W/m², and 0 to 9.9999 mW/cm² .
- Broad Frequency Bandwidth: The meter covers a frequency range of 100 kHz to 3 GHz, allowing it to measure EMFs from a variety of sources, including 5G cellular networks (Low-band and Mid-band) .
- Triaxial Sensor: The PCE-EMF 20 comes with two external sensor probes (one for low and one for high frequency ranges) to provide accurate measurements in all three spatial dimensions (X, Y, Z) .
- User-Friendly Interface: The device features a clear LCD display that shows the measured EMF values and allows easy navigation through the various functions .
- Data Storage: The PCE-EMF 20 can store multiple measurements for later review or analysis .
Applications
The PCE-EMF 20 is suitable for a wide range of applications, including:
- Workplace Safety: Employers can use this meter to assess the EMF levels in workplaces, such as offices, factories, and laboratories, to ensure that employees are not exposed to excessive EMFs .
- EMF Surveys: The PCE-EMF 20 is ideal for conducting EMF surveys in residential areas, schools, and public spaces to identify potential sources of high EMF levels .
- Compliance Testing: The meter can be used to verify compliance with EMF exposure limits set by regulatory bodies, such as the International Commission on Non-Ionizing Radiation Protection (ICNIRP) and the Federal Communications Commission (FCC) .
The PCE-EMF 20 Electromagnetic Field Meter is a valuable tool for anyone concerned about the potential health effects of EMFs. Its portability, wide measurement range, and ability to measure 5G EMFs make it a reliable choice for EMF assessment and safety monitoring.
PCE-EMF 20 Specifications
| Radiation | |
| Measurement range up to | 1 ... 1999 V/m |
| Resolution | 1 V/m |
| Accuracy | 1 V/m |
| Radiation | |
| Measurement range up to | 0,01 ... 99,99 µT |
| Resolution | 0,01 µT |
| Accuracy | 0.01 µT |
| General technical data | |
| Display type | LED |
| Display size | 2,2 Inch |
| Interface | USB-C |
| Response time | 0,5 s |
| Automatic power-off | 5 min |
| Bandwidth MF from | 5 Hz |
| Bandwidth MF to | 3500 MHz |
| Bandwidth EF from | 5 Hz |
| Bandwidth EF to | 3500 MHz |
| Alarm | Acoustic, optical |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 5 V |
| Weight | 75 g |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| (Rechargeable) battery | 1 x 3,7 V SL 603040 , Lithium-ion battery |
| Capacity | 700 mAh |
| Dimensions ( L x W x H ) | 110 x 55 x 23 mm |
