PCE-HT 112 Tempreture-humidity Datalogger
PCE-HT 112 Tempreture-humidity Datalogger

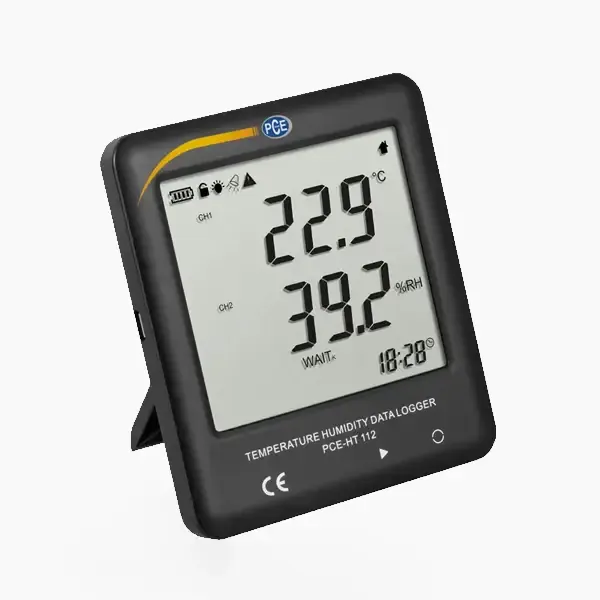

The PCE-HT 112 temperature data logger is a compact and very small device with an integrated display. It records temperature and humidity using its built-in sensor and shows these readings on the LCD screen. The PCE-HT 112 can store up to 25,920 measurements, which can be analyzed using the accompanying software. The data logger connects to a PC via a USB interface, allowing the software to set high or low temperature alarms. Additionally, the software can switch to an optional external sensor if needed.
The PCE-HT 112 temperature data logger stores measured values in both a format suitable for software analysis and as a PDF. The PDF document generated by the data logger includes a graph showing the measurement trend and an overview of all measured values in the report. The device features a base and a mounting tab on the back, and its display can be turned off to conserve battery life.
PCE-HT 112 Key Features
- Temperature and humidity data logger
- LCD display
- Memory for 25,920 readings
- Fast reading via USB
- Adjustable alarm limits
- Internal and opt. external sensor
PCE-HT 112 Specifications
| Measuring function | Temperature |
| Measuring range | -30 ... 65°C |
| / -22 ... 149°F | |
| (internal) | |
| -40 ... 125°C / -40 ... 257°F (external) | |
| Resolution | 0.1°C / 0.18°F |
| Accuracy | ± 0.3°C / 0.54°F (-10 ... 65°C / 14 ... 149°F) |
| ± 0.5°C / 0.9°F (remaining range) | |
| Measuring function | Humidity |
| Measuring range | 0 ... 100% RH (internal & external) |
| Resolution | 0.1% RH |
| Accuracy | < 3% (10% ... 90%) |
| > 4% (remaining area) | |
| Response time | 15 min (internal) |
| 5 min (external) | |
| Storage | 25920 readings |
| Storage rates | 30s, 60s, 2 min, 5 min, 10 min, 15 min, 20 min, 25 min, 30 min, 1 h or individually adjustable |
| Measuring interval / | 5 s |
| Refresh rate Display | |
| Alarm | Adjustable audible alarm |
| Inferface | USB |
| Power supply | 3 x 1.5V AAA batteries |
| 5V USB | |
| Battery life | Approx. 1 year (without lighting / without alarm) |
| Operating conditions | -30 ... 65°C / -22 ... 149°F |
| Storage conditions | -30 ... 65°C / -22 ... 149°F (without battery) |
| Dimension | 96 x 108 x 20 mm / 3.8 x 4.3 x 0.8 in |
| Weight | 120 g / < 1 lb |
| Degree of protection | IP20 |
