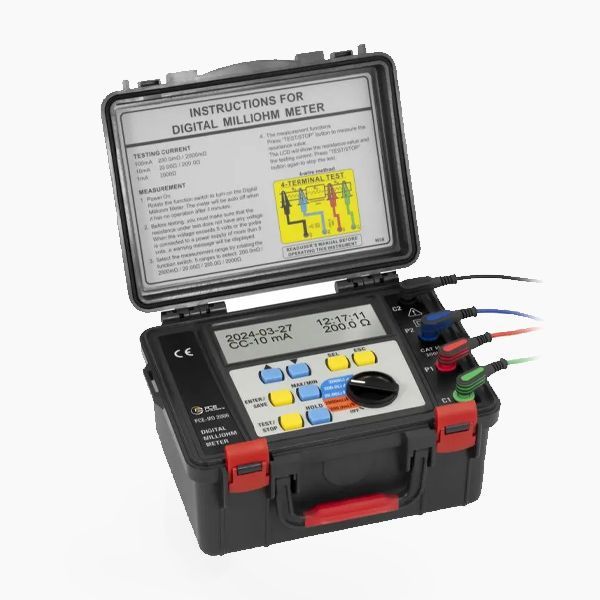

PCE-MO 2006 Milliohmmeter
2,716.00 AED
In stock
Product Details
PCE-MO 2006 Milliohmmeter
The PCE-MO 2006 Milliohmmeter is a precision instrument commonly used for measuring very low resistance values, often in the range of milliohms (thousandths of an ohm). This tool is essential in fields where exact resistance measurements are critical, such as in quality control processes in manufacturing, electrical installation safety testing, and component testing.
PCE-MO 2006 Key Features
- 4-wire measuring method
- 5 selectable measuring ranges
- MAX/MIN/HOLD functions
- Automatic switch-off
- LC display 5.1 inch with illumination
- Internal memory
- Date and time display
PCE-MO 2006 Specifications
| Resistance | |
| Measuring range | 0 µΩ … 200 µΩ |
| Resolution | 0.1 µΩ |
| Accuracy | ±(2% + 8 digit) |
| Resistance | |
| Measuring range | 0 µΩ … 2000 µΩ |
| Resolution | 1 µΩ |
| Accuracy | ±(2% + 8 digit) |
| Resistance | |
| Measuring range | 0 mΩ … 20 mΩ |
| Resolution | 0.01 mΩ |
| Accuracy | ±(1% + 4 digit) |
| Resistance | |
| Measuring range | 0 mΩ … 200 mΩ |
| Resolution | 0.1 mΩ |
| Accuracy | ±(1% + 4 digit) |
| Resistance | |
| Measuring range | 0 Ω … 2 Ω |
| Resolution | 1 mΩ |
| Accuracy | ±(1% + 4 digit) |
| Resistance | |
| Measuring range | 0 Ω … 20 Ω |
| Resolution | 0.01 Ω |
| Accuracy | ±(1% + 4 digit) |
| Resistance | |
| Measuring range | 0 Ω … 200 Ω |
| Resolution | 0.1 Ω |
| Accuracy | ±(1% + 4 digit) |
| General technical data | |
| Display type | LCD with illumination |
| Display size | 5.1 inch |
| Storage medium | Internal memory |
| Memory capacity | 200 values |
| Interface | RS232 |
| Standard(s) | IEC61010-1, EN 61326-1 |
| Automatic switch-off | 3 min |
| Safety standard | CAT III 300V |
| Measurement method | 4-wire method for mΩ measurement |
| Test current | 10 A: 200.0 μΩ / 2000 μΩ 1 A: 20.00 mΩ / 200.0 mΩ 100 mA: 2.000 Ω / 20.00 Ω 10 mA: 200.0 Ω |
| Menu language | English |
| Protection class (device) | IP30 |
| Power supply | 24 VDC / 0.625 A |
| Plug type | Euro plug device |
| Weight | 3126 g |
| Dimensions (L x W x H) | 322 x 260 x 135 mm |
| Operating conditions | 0 … 40 °C , 0 … 80 % r.H |
| Storage conditions | 0 … 40 °C , 0 … 40 % r.H |
| Accumulator/battery | 1x 14.8 V , lithium-ion battery |
| Capacity | 5200 mAh |
