PCE-PA 5500 Power Meter
516.00 AED
In stock
Product Details

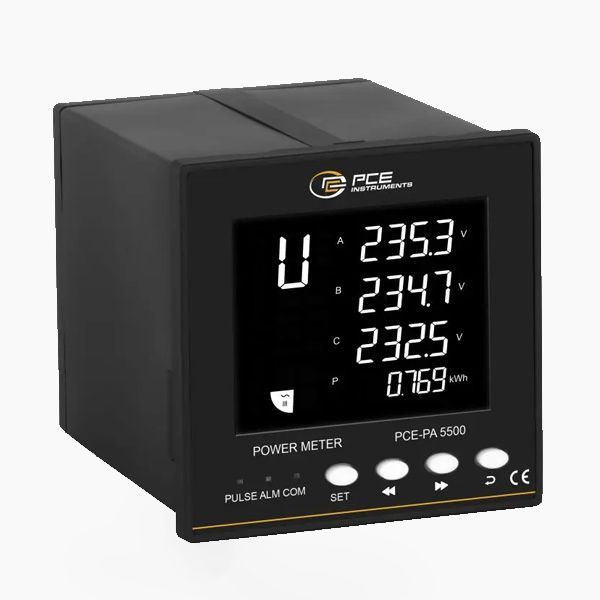

PCE-PA 5500 Power Meter
The PCE-PA 5500 Power Meter is a sophisticated instrument designed for comprehensive analysis and measurement of power in electrical systems. It is widely used in industrial, engineering, and maintenance applications to monitor and optimize energy consumption and performance of electrical installations.
The PCE-PA 5500 Power Meter is a crucial tool for professionals who need to maintain efficiency, ensure safety, and optimize power consumption in electrical systems. Its comprehensive measurement capabilities and portable design make it an essential instrument in various fields.
PCE-PA 5500 Key Features
- Alternating voltage: 30 ... 264 V
- Alternating current direct: 0.025 mA ... 5 A
- Energy meter
- RS485 Modbus interface
- Accuracy class: 0.5
PCE-PA 5500 Specifications
| AC voltage AC | |
| Measuring range | 30 V ... 264 V |
| Resolution | 0.1 V |
| Accuracy | 0.50% |
| Overload | 1500 VAC continuous |
| 2500 VAC, 50 ... 60 Hz for one minute | |
| Alternating current AC | |
| Measuring range | 0.025 A ... 5 A |
| Resolution | 0.01 A |
| Accuracy | 0.50% |
| Overload | 10-fold RMS for 1s. |
| Effective power | |
| Measuring range | 0.75 W ... 1320 W |
| Resolution | 0.01 W |
| Accuracy | 0.50% |
| Power factor | |
| Measurement range | -1 ... +1 |
| Resolution | 0.001 |
| Accuracy | 0.50% |
| Frequency | |
| Measuring range | 45 Hz ... 65 Hz |
| Resolution | 0.01 Hz |
| Accuracy | 0.50% |
| Harmonic measurement (harmonics) | |
| Measurement range | 1 (ordinal number) ... 50 (ordinal number) |
| Current range | 20 ... 100 % |
| Voltage range | 0.1 ... 100 % |
| General technical data | |
| Display type | LCD with illumination |
| Display size | 3.4 inch |
| Interface | RS485 |
| Standard(s) | IEC 62053-22, GB/T18215.322-2008, IEC61010-1 |
| Phase shift | 0 ... 359.9 ° |
| Switch panel cut-out | 96x96 mm |
| Menu language | English |
| Protection class (device) | IP20 |
| Power supply | 100 ... 260 VAC, approx. 5 W |
| Weight | 474 g |
| Depth | 110 mm |
| Operating conditions | -20 ... 60 °C , 0 ... 95 % r.H |
| Storage conditions | -20 ... 65 °C , 30 ... 80 % r.H |
| Accumulator/battery | 1x 3 V CR1225 , Lithium |
| Capacity | 50 mAh |
