PORTABLE APPLIANCE TESTER KYORITSU KEW 6205
2,715.00 AED
In stock
Product Details
kyoritsu:
kyoritsu
Display range :
30V-270V
Accuracy :
±5V
Measuring range:
0.00-20.00Ω
Open circuit voltage :
5V±0.4V DC
Rated voltage:
230V -15% - +10%/50Hz
Rated current:
10mA/30mA
Test duration:
0.0ms-500.0ms 0.0ms-40.0ms
Dimensions:
261(L) × 104(W) × 57(D)mm
Weight:
930g(including batteries)

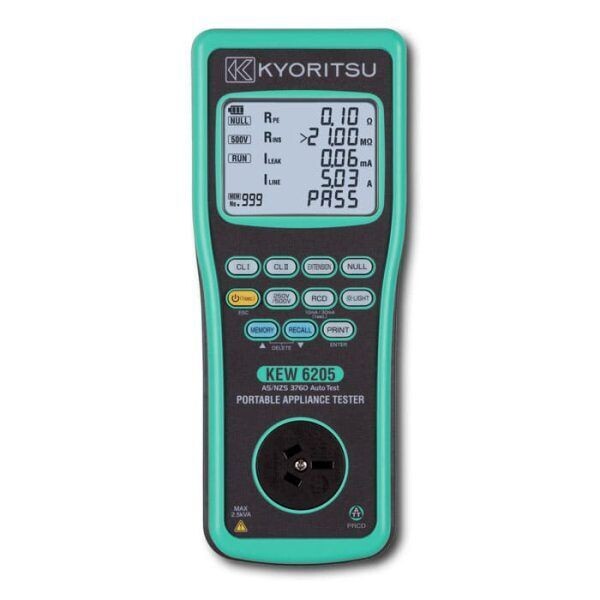

KYORITSU KEW 6205
The KEW 6205 Portable Appliance Tester is a specialized instrument designed for professionals engaged in the testing and inspection of portable appliances. With its comprehensive features and user-friendly design, this tester plays a crucial role in ensuring the safety and compliance of electrical appliances in various environments.
The KEW 6205 Portable Appliance Tester is a reliable and efficient tool for professionals engaged in the testing and inspection of portable appliances. Its comprehensive features, user-friendly design, and versatility make it an indispensable instrument for ensuring the safety and compliance of electrical appliances in various environments.
KYORITSU KEW 6205 Applications:
- Workplace Safety Compliance:
Essential for ensuring that portable appliances in workplaces comply with safety standards, reducing the risk of electrical hazards.
- Rental Properties and Housing:
Suitable for testing appliances in rental properties and residential settings to ensure the safety of occupants.
- Educational Institutions:
Applicable in educational institutions to verify the safety of electrical appliances used by students and staff.
- Facility Maintenance:
Ideal for routine maintenance checks of portable appliances in commercial and industrial facilities to prevent electrical failures.
PORTABLE APPLIANCE TESTER KYORITSU KEW 6205 Key Features:
- Versatile Appliance Testing:
The KEW 6205 is designed for testing a wide range of portable appliances, including Class I, Class II, and power cords. This versatility allows for comprehensive testing coverage in diverse settings.
- Earth Continuity Test:
The tester performs earth continuity testing to ensure that the metallic parts of an appliance are adequately connected to the earth, preventing the risk of electric shock.
- Insulation Resistance Test:
Featuring an insulation resistance test, the KEW 6205 checks the insulation integrity of appliances to identify potential issues that could lead to electrical faults.
- Polarity Test:
The polarity test ensures that the wiring of an appliance is correctly connected, preventing potential hazards and ensuring proper functionality.
- Current Leakage Test:
Conducting a current leakage test, the appliance tester identifies any leakage current from the appliance to ensure it is within safe limits.
- RCD Testing Capability:
The KEW 6205 may include the capability to test Residual Current Devices (RCDs) integrated into appliances. This feature ensures comprehensive safety testing.
- User-Friendly Interface:
Equipped with a user-friendly interface, including clear display and intuitive controls, the tester simplifies the testing process and enhances ease of use.
PORTABLE APPLIANCE TESTER KYORITSU KEW 6205 Specifications
| Function | Details |
| Class I Test | Protective conductor resistance (Test current 200mA DC nominal) |
| Insulation resistance test (250V or 500V) | |
| Leakage current test (100-253V/50Hz) | |
| Load current test (100-253V/50Hz) | |
| Class II Test | Insulation resistance test (250V or 500V) |
| Leakage current test (100-253V/50Hz) | |
| Load current test (100-253V/50Hz) | |
| Extension Lead Test | Protective conductor resistance (Test current 200mA DC nominal) |
| Insulation resistance test (between Line/Neutral-Earth short, Line/Neutral) | |
| Leakage current test (100-253V/50Hz) | |
| Polarity test | |
| RCD Test | RCD test (10mA/30mA) |
| Mains voltage indication | |
| Display Range | 30V-270V |
| Accuracy | ±5V |
| Protective Conductor Resistance Test | |
| Measuring Range | 0.00-20.00Ω |
| Open Circuit Voltage | 5V±0.4V DC |
| Measuring Current | 200mA DC (nominal value) |
| Accuracy | ±3%rdg±5dgt |
| Insulation Resistance Test | |
| Rated Voltage | 250V, 500V |
| Measuring Range | 0.00-20.00MΩ |
| No-load Voltage | 250V DC +20%,-0%, 500V DC +20%,-0% |
| Short Circuit Current | 1.5mA DC or less |
| Accuracy | ±2%rdg±3dgt |
| General | |
| Power Source | LR6 (AA) (1.5V) × 6 |
| Applicable Standards | IEC/EN61010-1 CAT II 300V, IEC/EN61010-2-030, IEC/EN61010-031, EN61326-2-2, AS/NZ3760 |
| Dimensions / Weight | 261(L) × 104(W) × 57(D) mm / Approx. 930g (including batteries) |
| Included Accessories | 7277 (Mains lead), 7129A (Test lead with Alligator clip), 7161A (Flat test prod), 7276 (Adaptor for Extension cord), 9193 (Carrying case), 8928 (Fuse [10A/250V]), 9121 (Shoulder strap), Buckle, LR6 (AA) x 6, Instruction manual |
| Optional Accessories | 8263-USB (USB cable with "KEW Report" software), 7275 (Printer cable: Mini Din 6pin-D-sub 9pin), 7248 (Test lead with Alligator clip and Flat test probe) |
