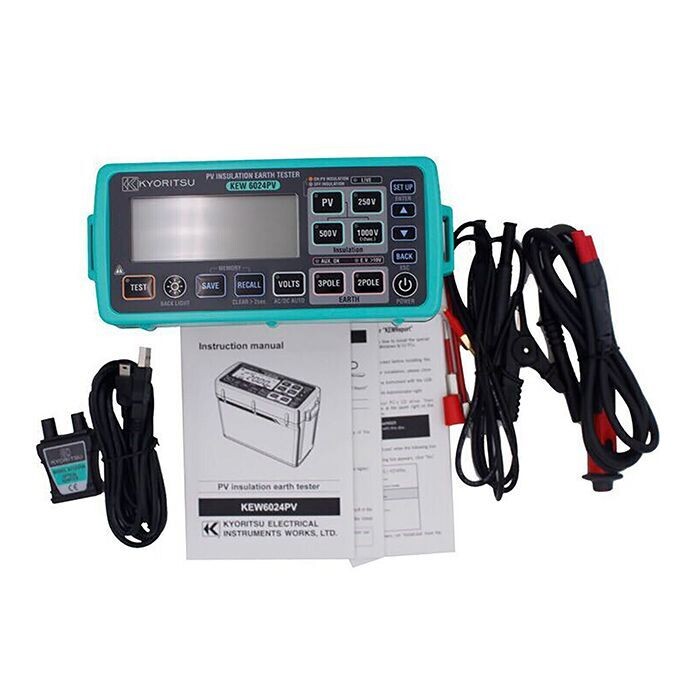

PV Insulation Earth Tester KYORITSU KEW 6024PV

PV Insulation Earth Tester KYORITSU KEW 6024PV

The KYORITSU KEW 6024PV PV Insulation Earth Tester is a specialized instrument designed for professionals involved in the testing and maintenance of photovoltaic (PV) systems. With its unique features tailored for solar installations, this tester provides a comprehensive solution for ensuring the insulation and earth integrity of PV systems.

The KYORITSU KEW 6024PV PV Insulation Earth Tester is a dedicated solution for professionals working with photovoltaic systems. Its specialized features, efficiency, and accuracy make it an indispensable tool for ensuring the integrity and reliability of solar installations.

PV Insulation Earth Tester KYORITSU KEW 6024PV Applications :

Photovoltaic System Commissioning:

• Ideal for testing insulation and earth resistance during the commissioning phase of PV systems to ensure proper functionality.

Periodic Maintenance:

• Essential for routine maintenance of PV installations, helping identify and address potential issues before they affect system performance.

Troubleshooting:

• Valuable for troubleshooting PV systems, aiding in the identification of insulation or earth-related problems that may impact overall system efficiency.

Quality Assurance:

• Suitable for quality assurance checks in the manufacturing and installation of PV systems, ensuring compliance with safety and performance standards.

PV Insulation Earth Tester KYORITSU KEW 6024PV Key Features :

Dedicated PV System Testing:

• The KYORITSU KEW 6024PV is specifically designed for testing insulation resistance and earth resistance in PV systems. This specialization ensures accurate and reliable measurements tailored to the unique requirements of solar installations.

Insulation Resistance Measurement:

• Capable of measuring insulation resistance in PV systems, the tester helps identify potential issues such as insulation degradation. This is crucial for preventing electrical faults and ensuring the long-term reliability of solar installations.

Earth Resistance Measurement:

• The tester facilitates accurate measurement of earth resistance in PV systems, contributing to the safe and efficient operation of solar arrays. Proper earth grounding is essential for system reliability and personnel safety.

Photovoltaic Array Simulator Connection:

• The KYORITSU KEW 6024PV may be equipped with the capability to connect to a photovoltaic array simulator. This feature allows for simulated testing conditions, providing a comprehensive assessment of the PV system's performance.

Efficient and Portable Design:

• Designed for efficiency, the tester is portable and easy to use in both field and laboratory settings. Its compact form factor ensures convenient transportation and on-site measurements.

Large LCD Display:

• Equipped with a large LCD display, the tester provides clear and easy-to-read measurement results. This ensures visibility in various lighting conditions and facilitates quick data interpretation.

Data Logging and Storage:

• The 6024PV may include data logging capabilities, allowing users to store and recall measurement results. This feature is valuable for record-keeping, trend analysis, and documentation purposes.

PV Insulation Earth Tester KYORITSU KEW 6024PV Specifications :

• Insulation resistance Measuring range: 20.00/200.0/2000MΩ
• Open circuit voltage: 0-+20%
• Short circuit current: Max 1.5mA
• Earth resistance Measuring range: 20.00/200.0/2000Ω
• Accuracy: ±3.0%rdg±0.1Ω (20Ωrange) ±3.0%rdg±3dgt 200/2000Ωrange)
• Voltage measurement Measuring range: AC 5-600V (45-65Hz) DC ±5-±1000V
• Accuracy: ±1.0%rdg±4dgt
• Power source: LR6(AA)(1.5V) x 6
• Dimensions: 84(L) x 184(W) x 133(D)mm
