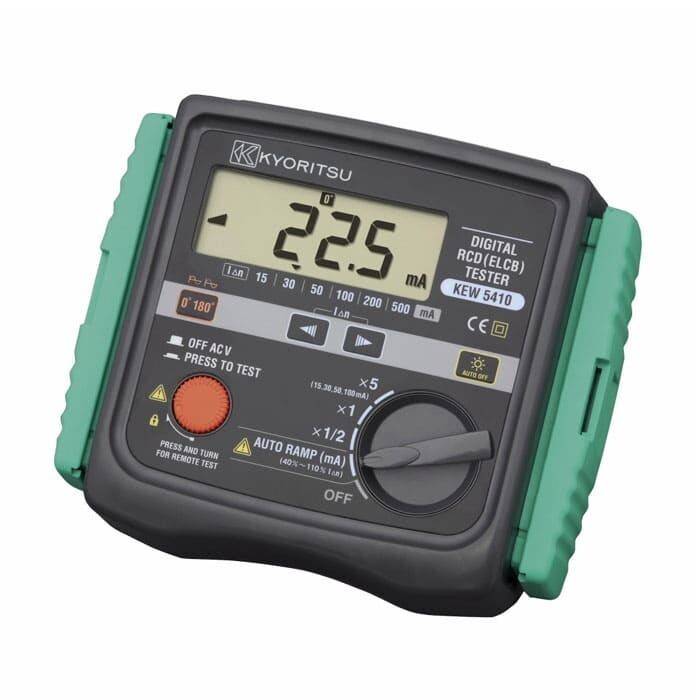

RCD TESTER KYORITSU KEW 5410

RCD TESTER KYORITSU KEW 5410

The KYORITSU KEW 5410 RCD Tester is a specialized instrument designed for professionals involved in testing Residual Current Devices (RCDs). With its advanced features and precision, this tester plays a crucial role in ensuring the safety and functionality of RCDs in electrical installations.

The KYORITSU KEW 5410 RCD Tester is a reliable and efficient tool for professionals engaged in the testing and verification of Residual Current Devices. Its advanced features, precision, and versatility make it an indispensable instrument for ensuring the safety and functionality of RCDs in electrical systems.

RCD TESTER KYORITSU KEW 5410 Applications :

Electrical Installation Verification:

• Essential for verifying the correct operation of RCDs in electrical installations to ensure the safety of personnel and equipment.

Periodic RCD Testing:

• Ideal for routine testing of RCDs to identify potential issues and ensure ongoing reliability and safety.

Construction and Maintenance:

• Applicable in construction and maintenance activities to verify the proper functioning of RCDs in temporary and permanent installations.

Compliance Testing:

• Suitable for compliance testing to ensure that RCDs meet regulatory and safety standards.

RCD TESTER KYORITSU KEW 5410 Key Features :

RCD Testing Capability:

• The KYORITSU KEW 5410 is specifically designed for testing various types of RCDs, including AC, A, S, and F type RCDs. This ensures comprehensive testing coverage for different electrical installations.

Tripping Time and Current Measurements:

• The tester measures both tripping time and tripping current, providing detailed information on the performance of RCDs. This data is essential for ensuring that RCDs operate within specified limits to provide effective protection.

Auto-Ramp Test Function:

• Featuring an auto-ramp test function, the KEW 5410 automatically increases the tripping current in sequential steps. This function allows for efficient testing across a range of current levels without manual adjustments.

Selectable Test Currents:

• The tester offers selectable test currents, allowing users to choose the appropriate current level for testing RCDs with different ratings. This flexibility ensures

compatibility with various RCD specifications.

High Resolution Display:

• Equipped with a high-resolution display, the KYORITSU KEW 5410 provides clear and easy-to-read measurement results. This ensures visibility in various lighting conditions and facilitates quick data interpretation.

Memory and Data Logging:

• The 5410 may include memory and data logging capabilities, allowing users to store and retrieve test results. This feature is valuable for record-keeping, trend analysis, and documentation purposes.

Compact and Portable Design:

• Designed for portability, the compact form factor of the KYORITSU KEW 5410 allows for easy transport and on-site testing. This feature ensures flexibility in various testing environments.

RCD TESTER KYORITSU KEW 5410 Specifications :

Voltage Measurement:

• MEASURING RANGE: 80V～450V 50/60Hz
• ACCURACY: 2%rdg±4dgt
• APPLICABLE STANDARDS: IEC 61010-1 Pollution degree2 CAT III 300V / CAT II 400V
  IEC 61010-031
  IEC 61557-1, 6
  IEC 60529 (IP54)
• DISPLAY: 1999 counts (3 1/2digits), Large LCD
• OPERATING TEMPERATURE & HUMIDITY RANGE: 0ºC – 40ºC, relative humidity 85% (no condensation)
• STORAGE TEMPERATURE & HUMIDITY RANGE: -20ºC – 60ºC, relative humidity 85% (no condensation)
• INSULATION RESISTANCE: 50MΩ or more / 1000V (between electrical circuit and enclosure)
• SLEEP FUNCTION: (1)Automatically enters Sleep mode in 3 minutes after the last switch operation (current consumption 75µA). This function doesn’t work at voltage measurements. To exit from the Sleep mode, set the Function switch to OFF position once, and re-set it to the Range at which a measurement to be conducted.
  (2) Backlight turns off in 1 minute after it lights up.
• POWER SOURCE: DC 12V / R6(AA)(1.5V) × 8
