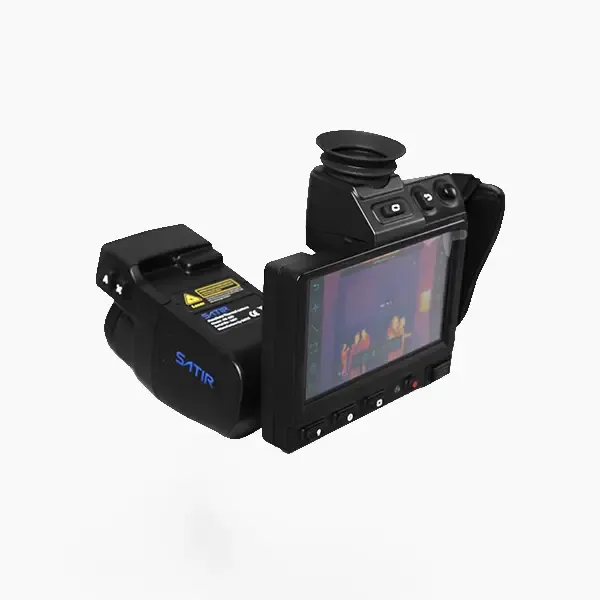

SATIR PX-100 Advanced Thermal Camera
0.00 AED
In stock
Product Details
Brand:
SATIR
Temperature range:
-20°C~+150°C (Low Temperature Range), 0°C~+410°C (Medium Temperature Range)
Color Palette:
10 Colour Palettes
Image display:
5.8 inch capacitive touch screen, 1280x768 Screen Resolution
Image file format:
.jpg/.png (Full Temperature Data)
Video Recording:
Yes
Field of view:
27.6°x20.8°
Focal length:
25mm
Focus:
Manual/Motorized/Auto
Infrared Resolution:
1024x768
Spectral range:
7.5μm~14μm
Thermal sensitivity:
≤0.03℃@30℃
Size (H x W x L) :
192x173x116 mm
Weight:
1.5 KG (Includes Battery)
Operating temperature:
-20℃~+55℃
Power:
Removable Rechargeable DC12V Lithium Battery
Interface:
Micro HDMI
SATIR PX-100 Advanced Thermal Camera
The SATIR PX-100 Thermal Camera is a high-performance 1024x768 thermal camera suitable for industrial and electrical applications. It features a 1024x768 IR detector, the highest IR resolution on the market, delivering clear, crisp images to the end user on the touch screen.
The camera also has a 5MP digital camera for comparing thermal and digital images, connectivity options via Wi-Fi and Micro HDMI, a wide temperature range from -20~+410°C, and 10 color palettes for user preference. SATIR is a thermal camera manufacturer based in Ireland, focusing on developing, producing, and marketing infrared camera.
Introducing the SATIR PX-100: Top-Tier IR Resolution for Unparalleled Thermal Imaging Clarity
The SATIR PX-100 features a 1024x768 IR detector, the highest IR resolution on the market, delivering clear, crisp images. It also has a 5MP digital camera, Wi-Fi and Micro HDMI connectivity, a wide temperature range, and 10 color palettes for user preference.
The PX-100 is best suited for industrial and electrical applications, where detailed thermal imaging is essential for surveying and monitoring.
The SATIR PX-100 Thermal Camera is a high-performance device suitable for industrial and electrical applications, offering advanced features and high image quality. As a product of SATIR, a leading manufacturer in the field, it represents the latest in thermal imaging technology.
SATIR PX-100 Thermal Camera Specifications
Thermal Camera:
- Detector type: 1024x768 UFPA
- Thermal sensitivity: ≤0.03℃@30℃
- Spatial resolution: 0.48mRad
- FOV: 27.6°x20.8°
- Focal Length: 25mm
- Focus Distance: 0.5m
- Spectral range: 7.5μm~14μm
- Frame rate: 25Hz
- Focus: Manual/Motorized/Auto
- Optional Lenses: 48°,12°,6°
Image presentation:
- LCD display: 5.8 inch capacitive touch screen, 1280x768 Screen Resolution
- Palettes: 10 Colour Palettes
- Digital camera: HD 5MP
- Digital Zoom: 1x,2x,4x,8x
Image storage & Connectivity:
- Type: 32GB removable SD card
- Thermal Image Format: .jpg/.png (Full Temperature Data)
- Thermal Video Format: Real—Time Radiometric recording (.irv)/.H264
- Video output interface: Micro HDMI
- Wifi: Yes
- Laser Distance: Yes, Displayed on thermal image
- GPS Function: Yes
- Alarm Mode: Yes
Temperature measurement:
- Measurement range: -20°C~+150°C (Low Temperature Range) 0°C~+410°C (Medium Temperature Range)
- Optional Temperature Range: +300°C~+650°C/+300°C~+2000°C/Other Ranges (HighTemperature Range)
- Tracking Function: Yes
- Analysis tool: 10 movable spots, auto hot/cold, 10 area boxes, 5 line
- Accuracy: ±2°C or 2% of readings
Environment specification:
- Operating temperature range: -20℃~+55℃
- Encapsulation: IP54
Physical characteristic:
- Weight: 1.5 KG (Includes Battery)
- Dimension: 192x173x116 mm
Power system:
- Battery Type: Removable Rechargeable DC12V Lithium Battery
- Charging Mode: Two Socket or 12V Car Charger
