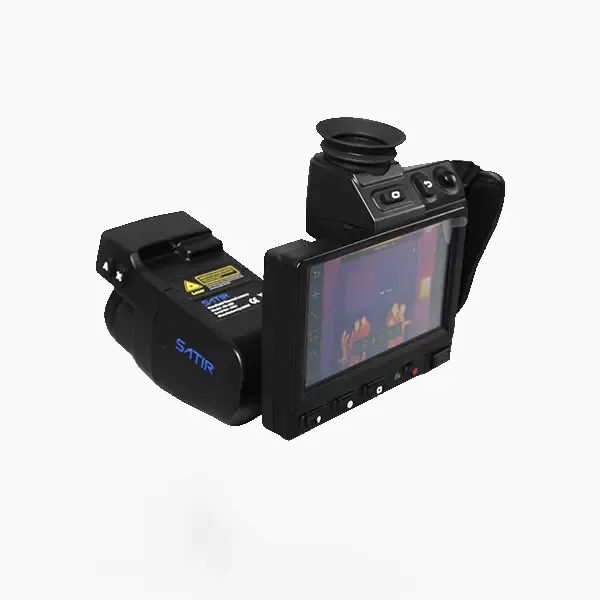

SATIR PX-600 Advanced Thermal Camera
0.00 AED
In stock
Product Details
Brand:
SATIR
Temperature range:
-40~650℃, up to 2000℃(optional)
Detection range:
0.35m
Capacity:
32GB removable SD card
Color Palette:
10 types including Iron, Iron-inverted, Grey, Grey-inverted
Image display:
5.8 inch capacitive touch screen
Image mode:
IR/CCD/Duo-vision/PiP
Video Recording:
Yes
Field of view:
24°x18°
Focus:
Automatic/Manual focus/Electric focus/Touch screen
Infrared Resolution:
640x480
Spectral range:
7.5μm~14μm
Thermal sensitivity:
≤0.04℃@30℃
Size (H x W x L) :
210x119x174 mm
Weight:
1.6 KG
Operating temperature:
-20℃~+55℃
Storage temperature:
-40℃~+70℃
SATIR PX-600 Advanced Thermal Camera
The SATIR PX-600 Thermal Camera is an advanced device developed by SATIR, a renowned manufacturer of thermal imaging cameras. This camera is designed to meet the demanding requirements of various industrial and commercial applications.
The PX-600 comes equipped with a new generation 640x480 IR detector, offering high-resolution thermal imaging capabilities. It also features advanced imaging modes, including IR, Digital (CCD), and Duo Vision, which overlays the thermal image with the digital image. The camera provides real-time display of thermal images and offers multiple control options, such as keypad and touch screen, to cater to user preferences and application requirements.
The PX-600 is suitable for a wide range of industrial and commercial thermal imaging activities, including predictive and preventive maintenance, condition monitoring, non-destructive testing, research and development, temperature measurement, and thermal testing. Its high-resolution IR detector and versatile imaging modes make it an invaluable tool for professionals in various fields.
The SATIR PX-600 Thermal Camera represents the latest in thermal imaging technology, offering high-resolution thermal imaging and versatile imaging modes to meet the diverse needs of industrial and commercial users. With its advanced features and durable design, the PX-600 is poised to make a significant impact in the field of thermal imaging and is a testament to SATIR's dedication to providing cutting-edge solutions for various applications.
SATIR PX-600 Specifications
Thermal Camera:
- Detector type: 640x480 UFPA
- Thermal sensitivity: ≤0.04℃@30℃
- Spatial resolution: 0.67mRad
- FOV/Min. Focus distance: 24°x18°/0.35m
- Spectral range: 7.5μm~14μm
- Frame rate: 60Hz
- Focus: Automatic/Manual focus/Electric focus/Touch screen
- Super Resolution: Yes
- Digital zoom: 1x to 10x
Image presentation:
- LCD display: 5.8 inch capacitive touch screen
- Image mode: IR/CCD/Duo-vision/PiP
- Digital camera: HD 8MP, CMOS module, built-in LED fill light
- Image Processing: Automatic/manual adjustment of contrast and brightness, automatic enhancement mode
- Image enhancement: Yes
Image storage:
- Type: 32GB removable SD card
Temperature measurement:
- Measurement range: -40~650℃, up to 2000℃(optional)
- Pseudo color: 10 types including Iron, Iron-inverted, Grey, Grey-inverted
- Analysis tool: 10 movable spots, auto hot/cold, 10 area boxes, 5 line
- Accuracy: ±1℃ or 1% of readings
Environment specification:
- Operating temperature range: -20℃~+55℃
- Ambient temperature range: -40℃~+70℃
Protective performance:
- encapsulation: IP54
- Shock/Vibration: 25G/2G
Physical characteristic:
- Weight: 1.6 KG
- Dimension: 210x119x174 mm
Power system:
- Battery operating time: > 3hours
Ports:
- Ouput ports: Type-C USB, Bluetooth, WIFI, HDMI
Other features:
- Viewfinder: Yes, 1024x768 pixels
- Illuminator: Yes
- Laser pointer: Yes
- Laser ranging: Yes, 40 meters
- QR code and Bar code: Yes
- Video record: Yes
- GPS: Yes
- 4G: Yes
