SATIR V80-T SF6 Gas Detection
0.00 AED
In stock
Product Details
Brand:
SATIR
weight:
2.5kg
dimension:
297.4x198x179.9 mm

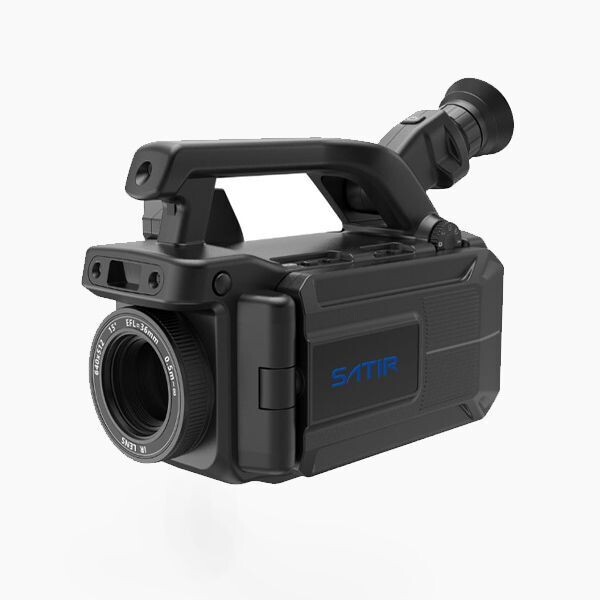

SATIR V80-T SF6 Gas Detection
SATIR is pleased to present the new Gas Detection Camera, which expands on the popularity of the V-Series lineup. The Satir V80-T is a redesign that aims to improve the ergonomics and operational performance of the camera. The V80-T, which has a new platform, gives consumers easier control and operations. For flexible gas detection and routine inspections, we have kept both normal and gas mode operations.
Satir V80-T Key Features
- 640×480 IR Detector
- SF6 Gas Detection
- Built-in 5MP HD Digital Camera
- 10 Colour Palettes
- High Gas Detection Sensitivity
- IR/Digital/Duo-vision/Duo-vision Plus/PiP
Satir V80-T Specifications
| Detector Resolution | 640×480 |
| Detector Type | QWIP |
| Thermal Sensitivity (N.E.T.D) | 0.015°C@30°C |
| Digital Zoom | 1X-8X |
| Responsivity | 0.001 ml/s |
| Spatial Resolution | 0.39mrad |
| FOV | 14°x 10.5° |
| Frame Frequency | 30Hz |
| Focus Mechanism | Auto/Manual |
| Spectral Range | 10.3 ~10.8 μm |
| Start -up Time | ≤7min |
| Digital Camera | 5MP Digital Camera |
| Output | HDMI |
| Display Screen | 5.8 inch Capacitive Touch Screen |
| Image Mode | IR/Digital/Duo-vision/Duo-vision Plus/ Picture in Picture |
| View Finder | Built-in OLED, 1024×768 pixels |
| Palette | 10 colour palettes including Iron Red/Grey/Inverted Iron Red/Inverted Grey |
| Thermal Image Adjustment | Auto/Manual |
| Text Annotation | Yes |
| Voice Annotation | Yes |
| Temperature Range | -20°C ~ + 410°C |
| Accuracy | ±2°C or ±2% |
| Analysis | 10 spots, 10 area boxes, 5 lines, auto-hot/auto-cold/average, Isotherm |
| Emissivity Correction | Variable from 0.01 to 1.0 |
| Optical Transmission Correction | Manual/Auto |
| Atmospheric Transfer Correction | Auto |
| Type | 32GB SD Card |
| Video Storage | H.264 video/fullly radiometric IR-video to SD card |
| Thermal Image Format | .jpg/.png |
| Visual Image Format | .jpg/.png |
| Battery Type | Rechargeable Li-ion Battery |
| Battery Life | ≥2.5hours |
| Charging System | 2 Bay Intelligent Charger |
| Power Supply | DC 12V 5A |
| Power Management | Supports Sleep Mode |
| Weight (includes battery) | 2.5kg |
| Dimensions | 297.4x198x179.9 mm |
| Tripod Mounting | UNC1/4-20 |
| Storage Temperature Range | -40°C to +70°C |
| Operating Temperature Range | -20°C~50°C |
| Humidity | 10%~95%, non-condensing |
| Encapsulation | IP54 |
| Shock | Shock 25G |
| Vibration | 2G |
