SBS-6800 Digital Battery Conductance Tester
0.00 AED
In stock
Product Details

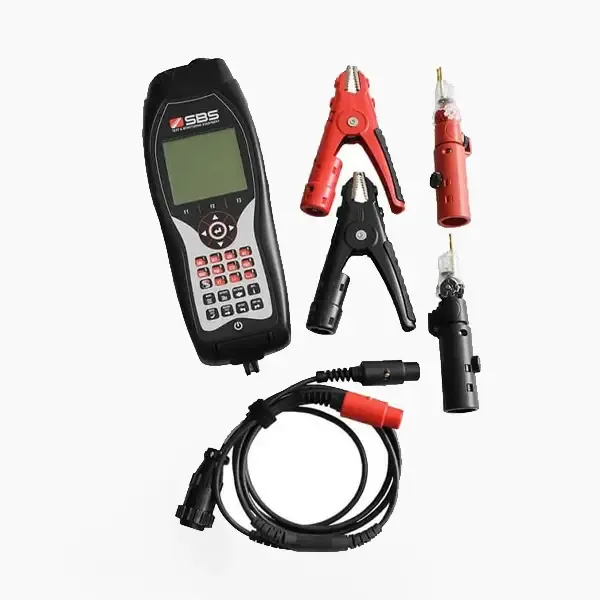

SBS-6800 Digital Battery Conductance Tester
The SBS-6800 Digital Battery Tester is a versatile conductance and voltage tester. It allows for quick cell or battery readings using the included pin probes or clamp probes. The SBS-6800 can be programmed with site names, battery details, and pass/warning/fail alarm set points for ohmic measurements (and pass/fail for voltage). All data is stored in the tester's internal memory and can be printed directly using the optional printer or exported for creating reports or trending. No additional software is required.
SBS-6800 Key Features
- Versatile: tests flooded lead acid, VRLA, NiCd, Li-ion and NiMH batteries and strings
- Automatically measures and stores data within seconds
- Voltage testing range of 1.0–20.0 Vdc
- IEC 6101-1 CAT II 300V safety standard
- Swappable 7.2Vdc NiMH battery with in-unit charging cord
- Large 2.97″ x 2.81″ LCD with LED backlit display
- Engine start / CCA test capabilities
SBS-6800 Specifications
| Specification | Details |
| Size and Weight | 4.0″ W x 3.0″ D x 11.0″ H; 2.6 lb. |
| Storage | 12,000 records, 250 reference values |
| Ah Measurement Range | 5–6000 Ah |
| Voltage Measurement | 0.001V, 0.8–20 Vdc, Accuracy: ±0.2% |
| Conductance Measurement | Range: 100–19,990 Siemens, Resolution: 0.001 G, Accuracy: ±2.0% |
| Display | 2.97″ LCD, 128 x 128 Pixel LED backlit screen |
| Communication Interface | USB data transfer by cable or drive |
| Power Supply | Rechargeable NiMH battery pack |
| Operation Time | 6–8 hours depending on the number of tests |
| Operation Temperature | 0° to 104°F |
| Related Products | SBS-6500: A general-purpose voltage and impedance tester, highly accurate and reliable for measuring and testing battery impedance. Megger Torkel 900: The fourth generation in the series of Megger’s trusted battery discharge test systems. |
