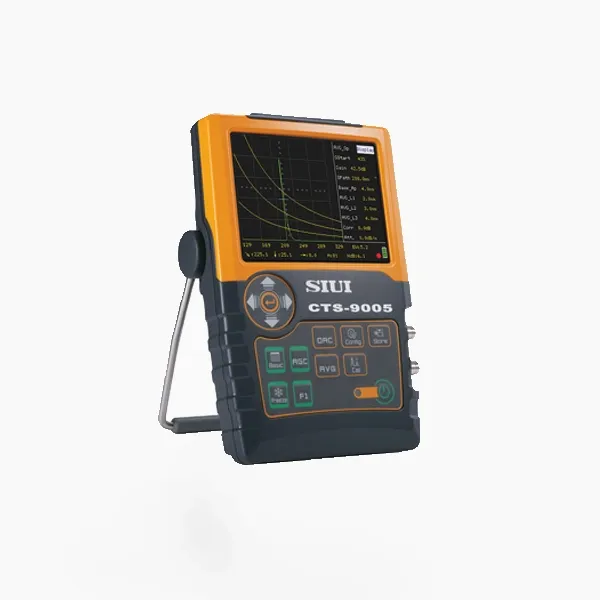

SIUI CTS-9005 Digital Ultrasonic Flaw Detector
SIUI CTS-9005 Digital Ultrasonic Flaw Detector
The SIUI CTS-9005 digital ultrasonic flaw detector is a portable, user-friendly, and efficient device designed for flaw detection in non-destructive testing. Its compact design and straightforward operation offer NDT professionals a convenient tool for a range of applications. The CTS-9005 boasts advanced features such as high-resolution imaging, auto gain control, and echo quantification capabilities, ensuring precise flaw detection results.
The CTS-9005 offers exceptional sensitivity
and accuracy
in detecting even the smallest flaws in metals, composites, and other materials. With a wide frequency range and adjustable gain settings, it provides precise readings, making it highly reliable for safety-critical applications.
SIUI CTS-9005 Key Features
- Eye Catching Design
- Complete Functions
- Reliable Quality
- Easy Operation
- Compact Size
SIUI CTS-9005 Specifications
| Feature | Description |
|---|---|
| Max. Sampling Rate | 240 MHz |
| Measurement Resolution | 0.1 mm |
| Operating Frequency Range | 0.5~10 MHz |
| Pulse Repetition Frequency (PRF) | 20~2000 Hz (step: 20 Hz) to avoid reverberation signals during flaw detection |
| Auto Gain Control (AGC) | Facilitates efficient flaw detection |
| AVG/DGS Curve | Works with echo compare function for convenient echo quantification of different distances and amplitudes |
| Display | 5.7” color TFT LCD with wide viewing angle, high brightness, and high definition for clear detail display |
| Peak Memory Function | Facilitates quick scanning and measurement on workpieces |
| Color Schemes | Three different color schemes to meet the requirements of different application environments and habits |
| Data Storage | Can save up to 300 sets of curves and waveforms for various workpieces and flaw-detection standards |
