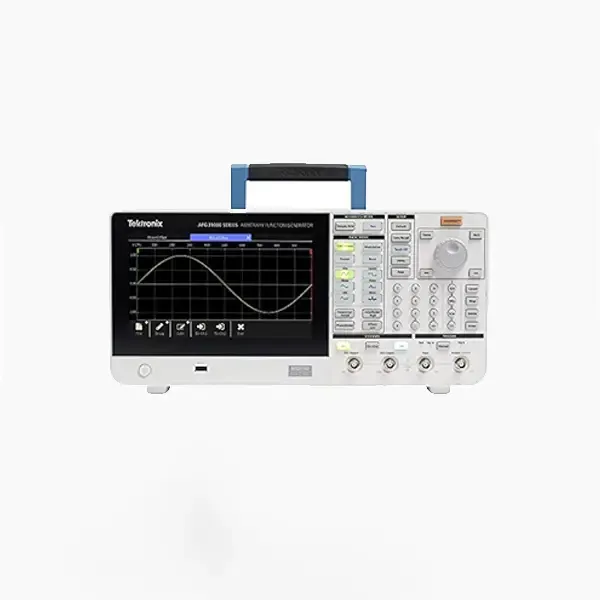

Tektronix AFG31051 Arbitrary Function Generator
0.00 AED
In stock
Product Details
Brand:
Tektronix
Channels :
1
Sine Frequency Range :
1 μHz to 50 MHz
Sample Rate :
250 MSa/s
Vertical Resolution :
14 bits
Amplitude Range (50 Ω) :
≤ 60 MHz: 1 mVP-P to 10 VP-P
Max Frequency Output :
50 MHz
Waveform Memory Size :
16 Mpts (128 Mpts optional)
Rise/Fall Time (Typical) :
≤ 7.0 ns (Amplitude ≤ 5Vpp)
Modulation:
AM, FM, PM
Output impedance:
50 Ω
Load impedance setting:
Selectable: 50 Ω, 1 Ω to 10.0 kΩ, High Z (Adjusts displayed amplitude according to selected load impedance)
Isolation:
42 Vpk maximum to earth ground
Short-circuit protection:
Signal outputs are robust against permanent shorts against floating ground
Run modes:
Continuous, Modulation, Sweep and Burst
Standard waveforms:
Sine, Square, Pulse, Ramp, More (Noise, DC,Sin(x)/x, Gaussian, Lorentz, Exponential Rise, Exponential Decay, Haversine )
Arbitrary waveforms:
Sampling clock: 250 MSa/s (16,384 pts), Vertical resolution: 14 bits,
Frequency range:
Continuous mode: 1 μHz to 50 MHz and Burst mode: 1 μHz to 25 MHz
Dimensions:
191.8 mm x 412.8 mm x 143.3 mm
Weight:
4.7 kg (10.4 lb.)
Operating temperature:
0 °C to +50 °C (32 °F to 122 °F)
Storage temperature:
-30 °C to +70 °C (-22 °F to 158 °F)
Altitude:
Up to 3,000 m (9,842 ft.)
Safety:
UL 61010-1:2004, CAN/CSA C22.2 No. 61010-1:2004, IEC 61010-1:2001
Display:
9-inch capacitive touch screen
Tektronix AFG31051
he Tektronix AFG31051 Arbitrary Function Generator is a powerful instrument designed for engineers and researchers who require high-performance waveform generation for their applications. As part of the AFG31000 series, the AFG31051 offers advanced features and a user-friendly interface, making it an ideal choice for precise signal creation.
Key Features
- InstaView™ Technology: One of the standout features of the AFG31051 is its patented InstaView technology. This innovative feature allows users to observe real-time waveforms directly at the device under test (DUT) without the need for an oscilloscope. By eliminating the requirement for additional equipment, InstaView technology streamlines the testing process, saving time and reducing potential measurement errors.
- Intuitive Touchscreen Interface: The AFG31051 is equipped with a large 9-inch capacitive touchscreen that operates similarly to a smartphone. This modern interface enables users to navigate through settings, select waveforms, and adjust parameters using intuitive gestures such as pinch, zoom, and swipe. The user-friendly design makes the device accessible to both experienced and novice users, enhancing overall productivity.
- Versatile Waveform Generation: The AFG31051 supports the generation of both standard and arbitrary waveforms. Users can create custom waveforms tailored to specific testing requirements, allowing for comprehensive analysis of electronic components and systems. This versatility makes the device suitable for a wide range of applications, from automotive testing to communications and embedded design.
Applications
The AFG31051 finds utility in various industries:
- Automotive Testing: It can simulate sensor signals and test electronic control units (ECUs) in vehicles, ensuring proper functionality.
- Embedded Design: Engineers use the device to generate test signals for embedded systems, validating their performance during development.
- Communications: The AFG31051 is ideal for testing and troubleshooting communication systems, generating signals that replicate real-world conditions.
- Research and Development: In academic and research settings, the device serves as a valuable tool for investigating new technologies and conducting experiments that require precise waveform generation.
The Tektronix AFG31051 Arbitrary Function Generator stands out due to its innovative InstaView technology and user-friendly interface. Its ability to generate complex waveforms makes it an essential tool for engineers and researchers across various fields. Whether used in automotive applications, embedded design, or communications testing, the AFG31051 enhances testing capabilities and improves overall efficiency in electronic design and validation processes.
Tektronix AFG31051 Specifications
| Sine frequency range | 50 MHz |
| Number of channels | 1 |
| Range (into 50 Ω) | ≤ 60 MHz: 1 mVP-P to 10`VP-P |
| > 60 MHz to ≤ 80 MHz: 1 mVP-P to 8`VP-P |
|
| > 80 MHz to ≤ 100 MHz: 1 mVP-P to 6`VP-P | |
| Range (into open circuit or High-Z) | ≤ 60 MHz: 1 mVP-P to 10`VP-P |
| > 60 MHz to ≤ 80 MHz: 2 mVP-P to 16`VP-P > 80 MHz to ≤ 100 MHz: 2 mVP-P to 12`VP-P |
|
| Accuracy | ± (1% of setting +1 mVP-P) |
| (1 kHz sine, 0 V offset, amplitude > 1 mVP-P) | |
| Resolution | 0.1 mVP-P, 0.1`mVRMS, 1`mV, 0.1`dBm or 4`digits |
| Units | Vpp, Vrms (excluding Arb and Noise), dBm (sine wave only), Volt (High Level and Low Level) |
| Offset | |
| Range (into 50 Ω) | ±(5 VPK - AmplitudeP-P ÷ 2) |
| Range (into open circuit or High-Z) | ±(10 VPK - AmplitudeP-P ÷ 2) |
| Accuracy | ± (1% of |setting| +1 mV + 0.5% of Amplitude (VP-P)) |
| Resolution | 1 mV or 4 digits |
| Output impedance
|
50 Ω |
| Load impedance setting
|
Selectable: 50 Ω, 1 Ω to 10.0 kΩ, High Z (Adjusts displayed amplitude according to selected load impedance) |
| Isolation
|
42 Vpk maximum to earth ground |
| Short-circuit protection
|
Signal outputs are robust against permanent shorts against floating ground |
| Overcurrent protection
|
When incoming current is greater than 250 mA, the output channels are protected with relays that disconnect the AFG from the device under test. Connection can be resumed by user after removing the incoming current |
| Run modes | Continuous, Modulation, Sweep and Burst |
| Standard waveforms | Sine, Square, Pulse, Ramp, More (Noise, DC,Sin(x)/x, Gaussian, Lorentz, Exponential Rise, Exponential Decay, Haversine ) |
| Arbitrary waveforms | Sampling clock: 1 GSa/s |
| Vertical resolution: 14 bits | |
| Waveform length: | 2 to 131,072 points |
| Frequency range | |
| Continuous mode | 1 μHz to 50 MHz |
| Burst mode | 1 μHz to 25 MHz |
| Physical characteristics | |
| Dimensions
|
|
| Height | 191.8 mm (7.55 in.) |
| Width | 412.8 mm (16.25 in.) |
| Depth | 143.3 mm (5.64 in.) |
| Weight
|
4.7 kg (10.4 lb.) |
| EMC, environment, and safety | |
| Operating Temperature
|
0 °C to +50 °C (32 °F to 122 °F) |
| Nonoperating Temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Humidity
|
|
| Operating | ≤ 80%, 0 °C to 40 °C (32 °F to104 °F) |
| ≤ 60%, > 40°C to 50°C (104 °F to 122 °F), noncondensing | |
| Nonoperating | 5% to 90%, < 40 °C (< 104 °F), noncondensing |
| 5% to 80%, ≥ 40 °C to 60 °C (≥ 104 °F to 140 °F), noncondensing | |
| 5% to 40%, > 60 °C to 70 °C (> 140 °F to 158 °F), noncondensing | |
| Altitude
|
|
| Operating | Up to 3,000 m (9,842 ft.) |
| Nonoperating | Up to 12,000 m (39,370 ft.) |
| EMC compliance
|
EN61326-1:2013, EN 61326-2-1:2013 |
| European Union | EU Council Directive 2004/108/EC |
| Safety
|
UL 61010-1:2004 |
| CAN/CSA C22.2 No. 61010-1:2004 | IEC 61010-1:2001 |
| Over-temperature protection
|
Instrument is protected from over-temperature by turning off outputs |
