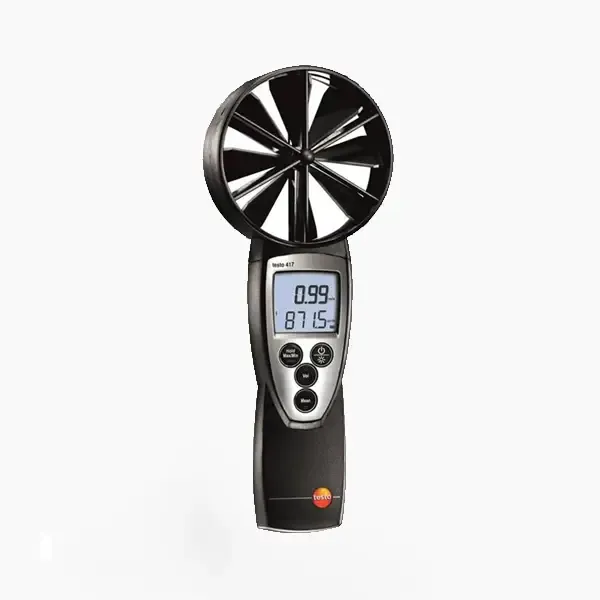

Testo 417 Rotating vane anemometer
1,700.00 AED
In stock
Product Details
Brand:
Testo
Air velocity (Range / Resolution / Accuracy):
+59.1 to +3937 fpm / +0.3 to +20 m/s, 1.97 fpm / 0.01 m/s, ±(19.7 fpm + 1.5 % of mv) / ±(0.1 m/s + 1.5 % of mv)
Air flow (volume) (Range / Resolution / Accuracy):
0 to +58857 CFM / 0 to +99999 m³/h, 0.1 CFM (0 to +58.8 CFM) / 0.1 m³/h (0 to +99.9 m³/h) 1 CFM (+59 to +58857 CFM) / 1 m³/h (+100 to +99999 m³/h)
Temperature (Range / Resolution / Accuracy):
32° to 122 °F / 0 to +50 °C, 0.1 °F / 0.1 °C, ±0.9 °F / ±0.5 °C
Operating temperature:
32° to 122 °F / 0 to +50 °C
Storage temperature:
-40° to 158 °F / -40 to +70 °C
Power:
9V block battery, 6F22
Dimentions:
11 x 4 x 2 in. / 277 x 105 x 45 mm
Weight:
8 oz. / 230 g
Testo 417
The TESTO 417 is a high-performance rotating vane anemometer designed for accurate measurement of air velocity, volume flow, and temperature in HVAC applications. This handheld device is particularly useful for technicians and engineers who need to assess airflow in ventilation systems, air conditioning units, and other environments where air movement is critical.
Key Features
- Measurement Capabilities: The TESTO 417 can measure air velocity from 0.3 to 20 m/s (approximately 60 to 3937 fpm) and temperature from 0 to 50 °C (32 to 122 °F). It can also calculate volume flow rates, making it versatile for various applications.
- Integrated Vane Sensor: The anemometer is equipped with a 100 mm (4 inches) rotating vane, which enhances its ability to capture airflow accurately over a larger area. This feature is essential for ensuring reliable measurements at air intake and outlet vents.
- Data Display and Functions: The device features a large backlit LCD display that provides clear readings even in low-light conditions. Users can easily switch between air velocity and temperature measurements, and the device includes functions for timed averages, minimum and maximum value recording, and a data hold feature to freeze readings for easy recording.
- Smart App Connectivity: The TESTO 417 is compatible with the Testo Smart App, allowing users to configure the device, display measurements on a second screen, and store data for documentation purposes. This integration streamlines the measurement process and enhances data management.
- Durability and Design: Constructed from robust ABS plastic, the TESTO 417 is designed for durability in demanding environments. Its compact design makes it easy to handle and transport.
- Battery Life: The anemometer is powered by a 9V battery, providing approximately 50 hours of operation, which is efficient for extended fieldwork.
Applications
The TESTO 417 is suitable for a wide range of applications, including:
- HVAC System Performance Testing: Ensuring that heating, ventilation, and air conditioning systems operate efficiently by measuring airflow and temperature.
- Building Inspections: Assessing air quality and circulation in residential and commercial buildings.
- Environmental Monitoring: Measuring airflow in clean rooms, laboratories, and other controlled environments.
- Meteorological Studies: Collecting data on wind speed and direction for research purposes.
The TESTO 417 Rotating Vane Anemometer is a reliable and efficient tool for professionals in HVAC and environmental monitoring fields. Its combination of advanced measurement capabilities, user-friendly features, and durable design makes it an essential instrument for anyone needing accurate airflow assessments.
Testo 417 Specifications
| General technical data | |
| Weight
|
8 oz. / 230 g
|
| Dimensions | 11 x 4 x 2 in. / 277 x 105 x 45 mm
|
| Operating temperature | 32° to 122 °F / 0 to +50 °C
|
| Housing | ABS
|
| Battery type | 9V block battery, 6F22
|
| Battery life | 50 h
|
| Storage temperature | -40° to 158 °F / -40 to +70 °C
|
| Temperature - NTC | |
| Measuring range
|
32° to 122 °F / 0 to +50 °C
|
| Accuracy | ±0.9 °F / ±0.5 °C
|
| Resolution | 0.1 °F / 0.1 °C
|
| Velocity - Vane anemometer | |
| Measuring range
|
+59.1 to +3937 fpm / +0.3 to +20 m/s
|
| Accuracy | ±(19.7 fpm + 1.5 % of mv) / ±(0.1 m/s + 1.5 % of mv)
|
| Resolution | 1.97 fpm / 0.01 m/s
|
| Volume flow | |
| Measuring range
|
0 to +259 CFM (testo 417 in combination with funnel set (0563 4170)) / 0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))
|
| 0.1 to +118 CFM , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172)) / 0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))
|
|
| 0 to +58857 CFM / 0 to +99999 m³/h
|
|
| Resolution | 0.1 CFM (0 to +58.8 CFM) / 0.1 m³/h (0 to +99.9 m³/h)
|
| 1 CFM (+59 to +58857 CFM) / 1 m³/h (+100 to +99999 m³/h)
|
