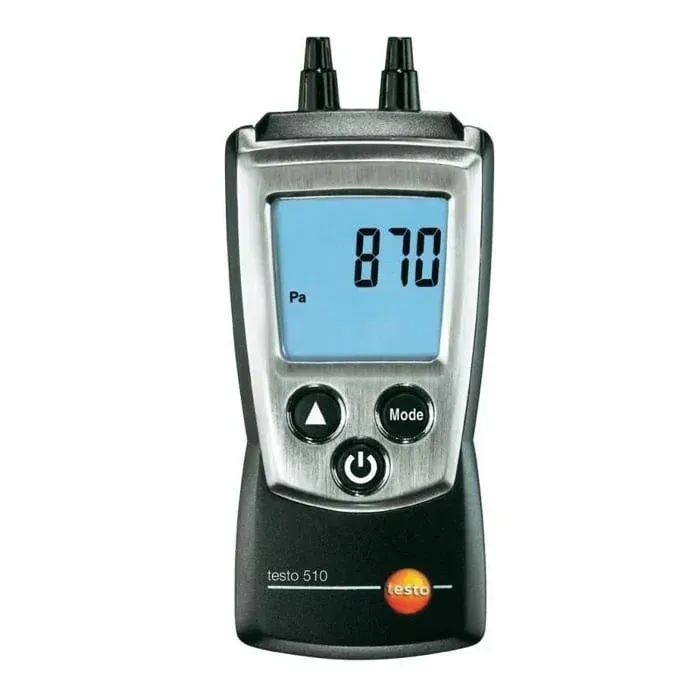

Testo 510 Digital Manometer
0.00 AED
In stock
Product Details
Brand:
Testo
Measuring range :
0 to 40 InH₂O / 0 to 100 hPa
Accuracy:
±0.02 InH₂O (0.12 to 0.40 InH₂O) / ±0.05 hPa (0.31 to 1.00 hPa), ±0.01 InH₂O (0 to 0.12 InH₂O) / ±0.03 hPa (0 to 0.30 hPa), ±(0.0 InH₂O + 1.5 % of mv) (0.40 to 40 InH₂O) / ±(0.1 hPa + 1.5 % of mv)
Resolution:
0.00 InH₂O / 0.01 hPa
Maximal static pressure :
7.252 psi / 500 mbar
Seceltable units :
hPa, mbar, Pa, mmH2O, inH₂O, inHg, mmHg, psi, m/s, fpm
Measuring rate :
0.5 sec
Dimensions:
5 x 2 x 1 in. / 119 x 46 x 25 mm
Weight:
32.0° to 122.0 °F / 0 to +50 °C
Operating temperature :
32.0° to 122.0 °F / 0 to +50 °C
Storage temperature :
-40.0° to 158.0 °F / -40 to +70 °C
Power:
2 AAA batteries
Buy Testo 510
Order-Nr. 0563 0510
The Testo 510 Digital Manometer is a versatile and compact instrument designed for measuring differential pressure, making it particularly useful for HVAC professionals and technicians. This manometer is ideal for applications such as checking filter performance in air conditioning systems, measuring static gas pressures, and assessing airflow in ventilation ducts. Its user-friendly design and advanced features make it a reliable tool for both installation and maintenance tasks.
Key Features
Here are the key features of the Testo 510 Digital Manometer:
- Differential Pressure Measurement: The Testo 510 can measure differential pressure within a range of 0 to 100 hPa (hectopascals), providing accurate readings essential for HVAC applications.
- Temperature Compensation: The device features temperature compensation, ensuring precise measurements even when environmental conditions change.
- Multiple Units of Measurement: Users can select from various units, including hPa, mbar, Pa, mmH₂O, inH₂O, inHg, mmHg, psi, m/s, and fpm, allowing flexibility based on the specific requirements of the task.
- Flow Velocity Measurement: With the optional Pitot tube attachment, the Testo 510 can measure airflow velocity within ducts, ranging from 10 to 100 m/s.
- Illuminated Display: The manometer comes with a backlit display that makes it easy to read measurements in low-light conditions.
- Hands-Free Operation: Equipped with magnets on the back, the device can be mounted on metallic surfaces for hands-free operation during measurements.
- Compact and Portable Design: Its small size makes it easy to carry and use in various settings without sacrificing functionality.
Testo 510 Specifications
Here are the key specifications of the Testo 510 Digital Manometer:
| General technical data | |
| Dimensions
|
5 x 2 x 1 in. / 119 x 46 x 25 mm
|
| Operating temperature | 32.0° to 122.0 °F / 0 to +50 °C
|
| Protection class | IP40
|
| Seceltable units | hPa, mbar, Pa, mmH2O, inH₂O, inHg, mmHg, psi, m/s, fpm
|
| Maximal static pressure | 7.252 psi / 500 mbar
|
| Measuring rate | 0.5 sec
|
| Battery type | 2 AAA batteries
|
| Battery life | 50 h (average, without display illumination)
|
| Storage temperature | -40.0° to 158.0 °F / -40 to +70 °C
|
| Weight | 3 oz. (with batteries and protective cap) / 90 g (with batteries and protective cap)
|
| Differential Pressure | |
| Measuring range
|
0 to 40 InH₂O / 0 to 100 hPa
|
| Accuracy | ±0.02 InH₂O (0.12 to 0.40 InH₂O) / ±0.05 hPa (0.31 to 1.00 hPa)
|
| ±0.01 InH₂O (0 to 0.12 InH₂O) / ±0.03 hPa (0 to 0.30 hPa)
|
|
| ±(0.0 InH₂O + 1.5 % of mv) (0.40 to 40 InH₂O) / ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)
|
|
| Resolution | 0.00 InH₂O / 0.01 hPa
|
The Testo 510 Digital Manometer
is an essential tool for HVAC professionals who require accurate pressure measurements and airflow assessments. Its combination of advanced features, ease of use, and portability make it a valuable asset for ensuring optimal performance in heating, ventilation, and air conditioning systems.
