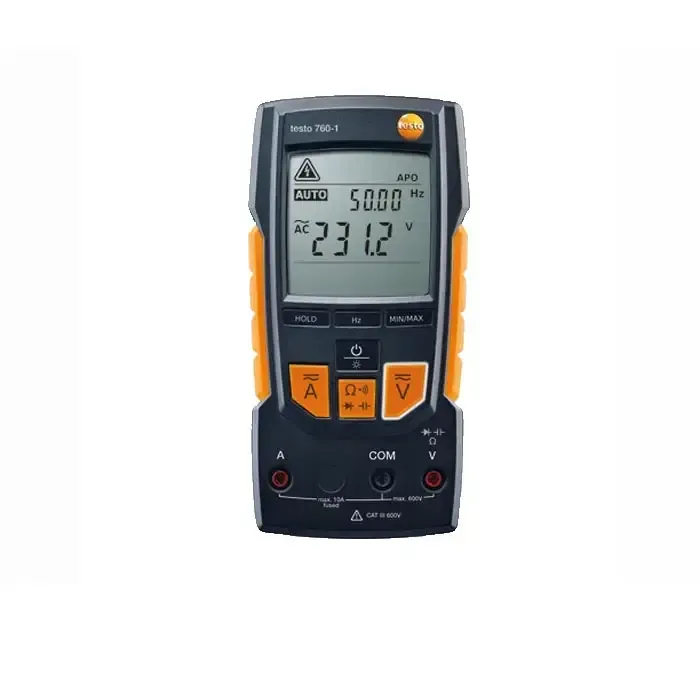

Testo 760-1 Digital Multimeter
0.00 AED
In stock
Product Details
Temperature Range:
-10 to +50 °C
Dimension:
167 x 85 x 45 mm
Weight:
340 g
Continuity buzzer:
Yes
Applicable standards:
EN 61326-1; EN 61010-2-033; EN 61140
Testo 760-1
Order-Nr. 0590 7601
The Testo 760-1 Digital Multimeter is designed for both professionals and enthusiasts who require reliable and straightforward measurement tools for electrical parameters. Its user-friendly interface makes it accessible for various skill levels, allowing users to perform essential electrical measurements with confidence.
One of the standout features of the Testo 760-1 is its auto-ranging capability, which simplifies the measurement process by automatically selecting the appropriate range for the measurement being taken. This feature is particularly beneficial for users who may not be familiar with the specific ranges required for different measurements, reducing the likelihood of errors.
The multimeter is also noted for its robust design, making it suitable for use in various environments, whether in a workshop or on-site. Its durability ensures that it can withstand the rigors of daily use while maintaining accuracy.
In terms of functionality, the Testo 760-1 excels at measuring a variety of electrical parameters, including AC and DC voltage, current, and resistance. This versatility makes it an ideal tool for electricians, technicians, and hobbyists alike. Furthermore, its clear display allows users to read measurements easily, even in less-than-ideal lighting conditions.
Testo 760-1 Specifications
| direct current DC | |
| measuring range
|
1 mV to 600 V
|
| resolution | max. 1 mA
|
| accuracy | ± (0.8% of reading + 3 digits)
|
| alternating current AC | |
| measuring range
|
1 mV to 600 V
|
| resolution | max. 1.0 mV
|
| accuracy | ± (1.0% of reading + 3 digits)
|
| direct current DC | |
| measuring range
|
1 mA to 10 A
|
| resolution | max. 1 mA
|
| accuracy | ± (1.5% of reading + 5 digits)
|
| alternating current AC | |
| measuring range
|
1 mA to 10 A
|
| resolution | max. 1 mA
|
| accuracy | ± (1.0% of reading + 3 digits)
|
| Resistance | |
| resolution
|
max. 0.1 Ohm
|
| measuring range | 0.1 Ohm to 40.00 MOhm
|
| accuracy | ± (1.5% of the measured value + 3 digits)
|
| capacity | |
| resolution
|
max. 0.01 nF
|
| measuring range | 0.01 nF to 100 μF
|
| accuracy | max. ± (1.5% of mv. + 5 digits)
|
| frequency | |
| resolution
|
max. 0.001 Hz
|
| measuring range | 0.001 Hz to 512.0 kHz
|
| accuracy | ± (0.1% of reading + 1 digit)
|
| General technical data | |
| operating humidity
|
0 to 80 %RH
|
| Weight | 340 g
|
| Dimensions | 167 x 85 x 45 mm
|
| operating temperature | -10 to +50 °C
|
| product color | black
|
| protection class | IP64
|
| standards | EN 61326-1; EN 61010-2-033; EN 61140
|
| battery type | 3 AAA micro cells
|
| display size | two lines
|
| display type | LCD (Liquid Crystal Display)
|
| interfaces | 4 measuring sockets
|
| storage temperature | -15 to +60 °C
|
| measurement category | CAT III 600V
|
| approvals | CSA; CE
|
| internal resistance | 11 MOhm (AC / DC)
|
| device and measurement functions | |
| diode test
|
Yes
|
| continuity test | Yes
|
| display lighting | Yes
|
| Hold | Yes
|
| MinMax | Yes
|
| Display (Counts) | 4,000
|
| Automatic measurement value recognition | Yes
|
