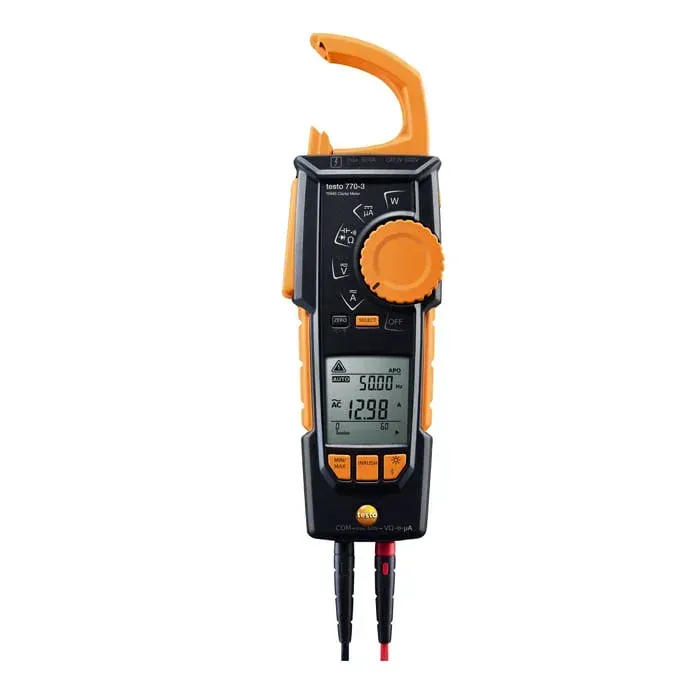

Testo 770 3 Clamp Meter With Bluetooth
0.00 AED
In stock
Product Details
Brand:
Testo
AC Current Range:
0.1 to 600.0 A (clamp), 0.1 to 600.0 μA (measuring cables)
DC Current Range:
0.1 to 600.0 A (clamp), 0.1 to 600.0 μA (measuring cables)
AC Voltage Range:
1.0 mV to 600.0 V
DC Voltage Range:
1.0 mV to 600.0 V
Current Resolution:
0.1 A (clamp), 0.1 μA (measuring cables)
Current Accuracy:
± (2 % of mv + 5 Digit) (clamp), ± (1.5 % of mv + 5 Digit) (measuring cables)
Capacitance Range:
2 nF to 60.00 mF
Frequency Range:
0.01 Hz to 9999 kHz
Temperature Range:
-20 to +500 °C
Dimension:
249 x 96 x 43 mm
Weight:
378 g
Power Supply:
3 AAA micro batteries
Operating temperature:
-10 to +50 °C
Storage temperature:
-15 to +60 °C
Applicable standards:
EN 61326-1; EN 61010-2-032; EN 61140
Buy Testo 770-3
Order-Nr. 0590 7703
The Testo 770-3 Clamp Meter with Bluetooth is a versatile and advanced tool designed for professionals in electrical and HVAC fields. This clamp meter excels in measuring various electrical parameters, making it ideal for demanding tasks in tight spaces. Its innovative design features a fully retractable pincer arm, allowing users to easily access tightly packed cables. With Bluetooth connectivity, the Testo 770-3 enables seamless data transfer to smartphones and tablets, enhancing usability and efficiency.
Key Features
The Testo 770-3 offers several standout features that make it a reliable choice for professionals:
- Retractable Pincer Arm: The clamp meter's movable arm can be fully retracted, allowing for easy access to cables in confined spaces, much like a hook.
- Automatic Parameter Detection: The device automatically detects and selects AC/DC voltage as well as other electrical parameters such as resistance, continuity, diode testing, and capacitance.
- Enhanced Measurement Accuracy: Improved TRMS (True Root Mean Square) measurement technology ensures high precision across a range of electrical measurements.
- Bluetooth Connectivity: Users can connect the clamp meter to the Testo Smart Probes App via Bluetooth, enabling real-time data visualization and documentation directly on mobile devices.
- Dual-Line Display: The large two-part display allows for simultaneous viewing of multiple measurements, enhancing user convenience during complex tasks.
Testo 770 3 Specifications
Here are the key specifications of the Testo 770-3:
| Temperature - TC Type K (NiCr-Ni) | |
| Measuring range
|
-20 to +500 °C
|
| Accuracy | ±1 °C (0 to +100 °C)
|
| Resolution | 0.2 °C
|
| DC voltage | |
| Measuring range
|
1.0 to 600.0 V
|
| Resolution | max. 1 mV
|
| Accuracy | ± (0.8 % of mv + 3 Digit)
|
| AC voltage | |
| Measuring range
|
1.0 mV to 600.0 V
|
| Resolution | max. 1 mV
|
| Accuracy | ± (1 % of mv + 3 Digit)
|
| DC current | |
| Measuring range
|
0.1 to 600.0 A (clamp)
|
| 0.1 to 600.0 μA (measuring cables)
|
|
| Resolution | 0.1 (clamp)
|
| 0.1 (measuring cables)
|
|
| Accuracy | ± (2 % of mv + 5 Digit) (measuring cables)
|
| ± (2 % of mv + 5 Digit) (clamp)
|
|
| AC current | |
| Measuring range
|
0.1 to 600.0 A (clamp)
|
| 0.1 to 600.0 μA (measuring cables)
|
|
| Resolution | 0.1 A (clamp)
|
| 0.1 μA (measuring cables)
|
|
| Accuracy | ± (2 % of mv + 5 Digit) (clamp)
|
| ± (1.5 % of mv + 5 Digit) (measuring cables)
|
|
| Resistance | |
| Resolution
|
max. 0.01 Ohm
|
| Measuring range | 0.01 to 60.0 MOhm
|
| Accuracy | ± (1.5 % of mv + 3 Digit)
|
| Capacitance | |
| Resolution
|
max. 0.01 nF
|
| Measuring range | 2 nF to 60.00 mF
|
| Accuracy | ± (1.5 % of mv + 5 Digit)
|
| Frequency | |
| Resolution
|
max. 0.1 Hz
|
| Measuring range | 0.01 Hz to 9999 kHz
|
| Accuracy | ± (1 % of mv + 1 Digit)
|
| Active Power | |
| Measuring range
|
0.1 W to 600 kW
|
| Accuracy | ± (5 % of mv + 5 Digit)
|
| Resolution | 0.1 W
|
| Reactive Power | |
| Measuring range
|
0.1 to 600.0 kvar
|
| Accuracy | ± (10 % of mv + 5 Digit)
|
| Resolution | 0.1 var
|
| Apparent Power | |
| Measuring range
|
0.1 VA to 600.0 kVA
|
| Accuracy | ± 1 Digit
|
| Resolution | 0.1 VA
|
| Direct current DC Voltage | |
| Measuring range
|
0.1 W to 600.0 kW
|
| Accuracy | ± 1 Digit
|
| Resolution | max. 0.1 W
|
| Power Factor | |
| Measuring range
|
-1.00 to +1.00
|
| Accuracy | ± (10 % of mv + 5 Digit)
|
| Resolution | 0.01
|
| General technical data | |
| Operating humidity
|
0 to 80.0 %RH
|
| Weight | 378 g
|
| Dimensions | 249 x 96 x 43 mm
|
| Operating temperature | -10 to +50 °C
|
| Connectable probes | 1 x temperature probe (adapter required for type K thermocouples)
|
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
|
| Product colour | Black
|
| Standards | EN 61326-1; EN 61010-2-032; EN 61140
|
| Battery type | 3 AAA micro batteries
|
| Display type | LCD (Liquid Crystal Display)
|
| Display size | 2 lines
|
| Interface | 2 measuring jacks
|
| Storage temperature | -15 to +60 °C
|
| Overvoltage Category | CAT IV 600V; CAT III 1000V
|
| Authorizations | CSA; CE
|
| Internal_resistance | 11 MOhm (AC / DC)
|
| Instrument Measurement Functions | |
| Diode test
|
yes
|
| Continuity testing | yes
|
| Display ligthing | yes
|
| Hold | yes
|
| MinMax | yes
|
| Power Measurement | yes
|
| Temperature measurement with adapter | yes
|
| True RMS | yes
|
| Inrush current measurement | yes
|
| Bluetooth | yes
|
| Display (counts) | 6,000
|
| μA current measuring range | yes
|
| Autom. measurement parameter detection | yes
|
The Testo 770-3 Clamp Meter with Bluetooth is an essential instrument for electricians and HVAC technicians seeking precision and reliability in their measurements. This powerful device is now available on uazon website.
