Technical Features And Field Applications Of The Megger DLRO10X

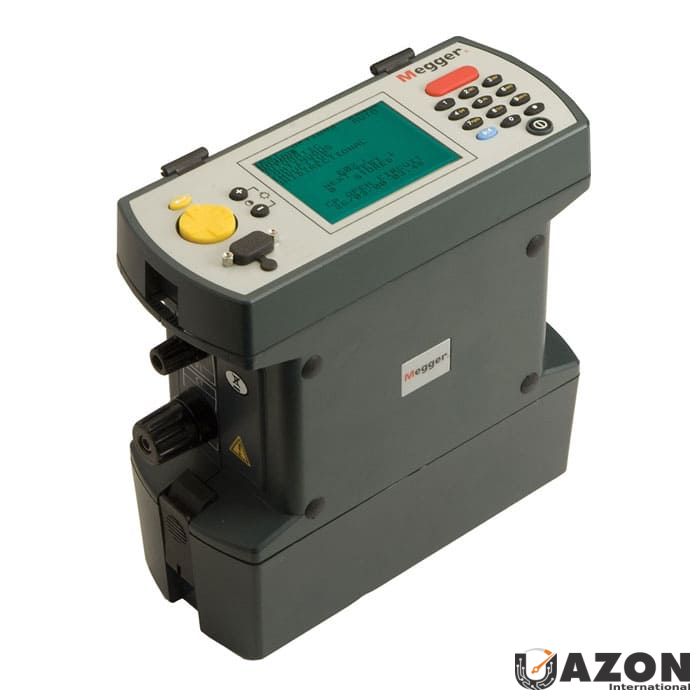

The Megger DLRO10X Micro ohmmeter represents a significant advancement in low resistance measurement technology. As a fully automatic instrument, it is engineered to select the most suitable test current—up to 10 A DC—to measure resistance across an impressive range from 0.1 µΩ to 2000 Ω. This versatility is achieved through seven distinct ranges, ensuring precision whether testing circuit breaker contacts, busbar joints, or small component connections. For users who require greater control, the DLRO 10X features an intuitive menu system operated by a two-axis paddle, allowing for manual selection of test currents. This blend of automation and manual flexibility makes it an indispensable tool for electrical engineers and maintenance technicians who demand accuracy and efficiency in their daily diagnostics.

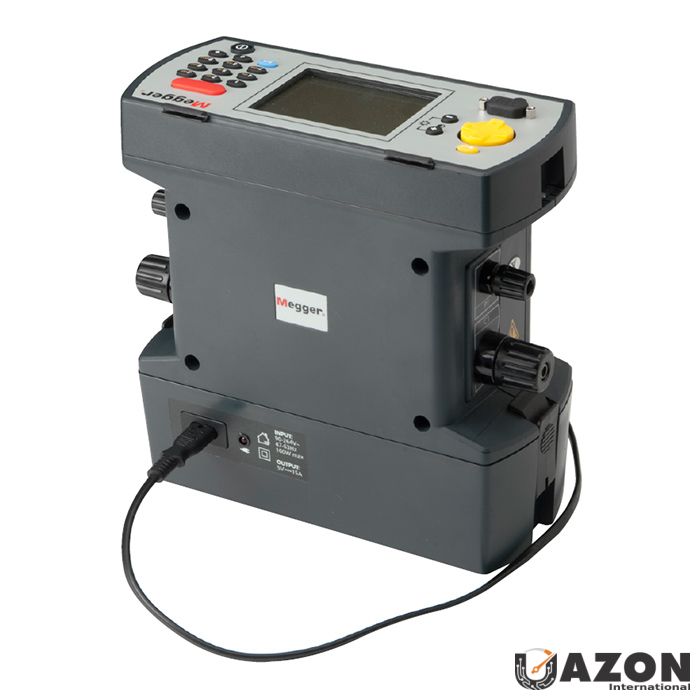

Built into a strong, lightweight case, the DLRO 10X is designed to perform equally well in the field or within a controlled laboratory environment. Its portability is a key advantage; light enough to be worn around the neck, the device is small enough to access areas that were previously too confined for standard test equipment. The instrument features a large, backlit LCD display that ensures clear visibility in various lighting conditions. Beyond its hardware, the DLRO 10X enhances productivity with real-time download capabilities and on-board storage, allowing users to save results for later transfer to a PC. When considering the Megger DLRO10X price, these professional-grade features justify the investment for any organization prioritizing reliability and data integrity in electrical testing.
Advanced Measurement Modes And Operational Control
The operational versatility of the Megger DLRO10X is defined by its comprehensive measurement modes, which cater to a wide array of testing scenarios. Unlike basic ohmmeters, the DLRO 10X supports Manual, Auto, Continuous, Inductive, and Undirectional modes. This flexibility allows technicians to adapt the testing procedure to the specific characteristics of the component under test, whether it is a highly inductive winding or a straightforward resistive joint. The undirectional mode is particularly useful for specific applications where reversing current may not be necessary, streamlining the testing process for faster results.
Measurement control on the DLRO 10X is both sophisticated and user-friendly, offering a choice between fully automatic operation and manual intervention. In automatic mode, the instrument intelligently selects the optimal test current, reducing the potential for user error and ensuring consistent results. For scenarios requiring specific current levels, the manual mode, controlled via the two-axis paddle, provides precise operator oversight. The device achieves measurement speeds of less than three seconds for forward and reverse current cycles, displaying the average result almost instantaneously. This rapid testing capability is crucial for high-volume maintenance schedules where time is of the essence, making the DLRO 10X a top choice for professionals seeking the best price on high-performance test equipment.
Display Technology And Visual Interface

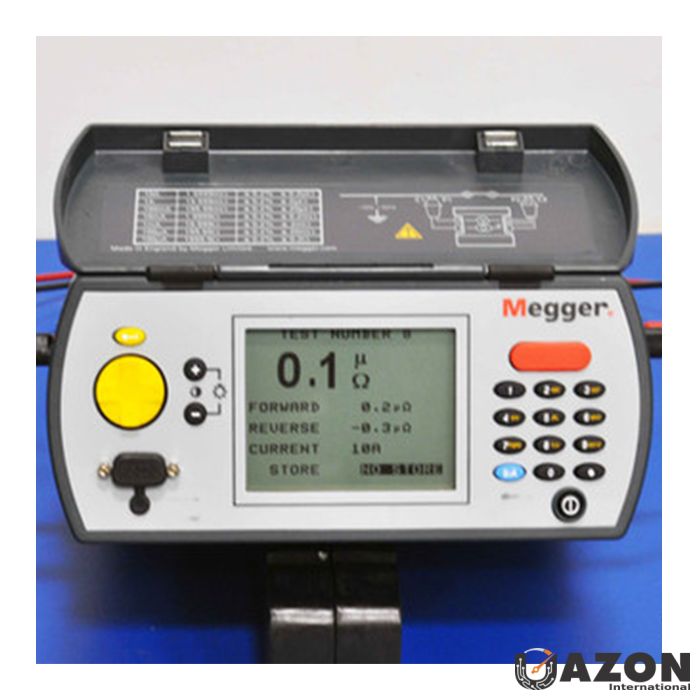

Clarity and readability are paramount when monitoring test results, and the Megger DLRO10X excels in this regard with its advanced display technology. Unlike its predecessor, the DLRO 10, which utilizes a 4 1/2-digit seven-segment LED display, the DLRO 10X is equipped with a large, color LCD display. This modern interface provides superior contrast and brightness, ensuring that data is easily readable in direct sunlight or low-light environments typical of industrial settings. The color display also allows for enhanced data visualization, making it easier to interpret complex readings at a glance.
The visual interface of the DLRO 10X is designed to minimize eye strain during prolonged testing sessions while maximizing information density. The large screen presents measurement data, range settings, and status indicators in a clean, organized layout. This user-centric design reduces the cognitive load on the operator, allowing for faster decision-making regarding the condition of the equipment under test. By investing in the Megger DLRO10X, users gain access to a display system that not only shows numbers but provides a comprehensive overview of the measurement status, contributing to safer and more efficient testing procedures.
Technical Specifications And Measurement Accuracy
The Megger DLRO10X is engineered to deliver exceptional accuracy and stability, backed by rigorous technical specifications. The instrument employs a single-cycle reversing DC ratiometric measurement method, which averages results to eliminate noise and provide a stable reading. This technique is highly effective at filtering out interference from external electromagnetic sources, ensuring that the displayed value accurately reflects the resistance of the test subject. The test current accuracy is maintained at ±10%, a standard that ensures reliable comparisons across repeated measurements.
