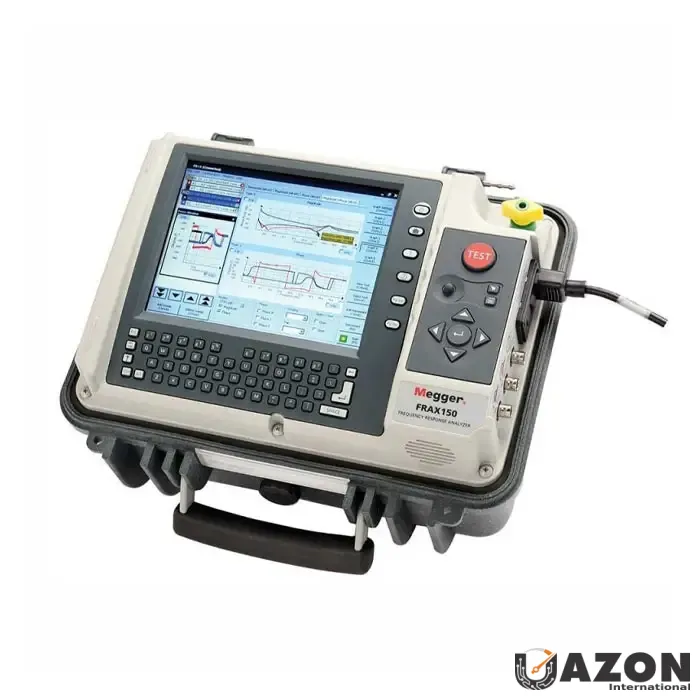

Megger FRAX 150 Sweep Frequency Response Analyzer

Megger FRAX 150 Sweep Frequency Response Analyzer

The Megger FRAX 150 Sweep Frequency Response Analyzer (SFRA) represents a sophisticated evolution in diagnostic testing for high-voltage power transformers. As critical assets in electrical grids, transformers require precise monitoring to prevent catastrophic failures and ensure operational longevity. The FRAX 150 utilizes the Sweep Frequency Response Analysis (SFRA) technique, a non-destructive testing method that compares the acoustic and electrical fingerprint of a transformer against established baselines. By injecting a variable frequency signal and analyzing the response, this instrument detects subtle mechanical and electrical anomalies that traditional testing methods often miss. For utility engineers and maintenance teams seeking the best price for reliability, the Megger FRAX 150 offers a comprehensive solution for assessing the integrity of transformer cores, windings, and insulation systems.

When considering the investment in advanced diagnostic equipment, understanding the application is key to recognizing value. The FRAX 150 is designed to uncover hidden faults such as winding deformations, displacements, and core movement, which can occur due to transport stresses, short circuits, or thermal aging. By identifying these issues early, operators can schedule targeted maintenance, avoiding costly unplanned outages. For those looking to buy the Megger FRAX 150, the instrument provides a high dynamic range and international standard compliance, ensuring that every test performed is both accurate and defensible. This article explores the technical features, field applications, and operational benefits of the FRAX 150, providing a detailed guide for making an informed procurement decision.

Technical Features and Field Applications of the Megger FRAX 150

The core functionality of the Megger FRAX 150 lies in its ability to generate a unique fingerprint for every transformer tested. This section introduces the primary technical specifications and how they translate to real-world benefits in the field. Rather than simply listing hardware metrics, we focus on how these features empower technicians to diagnose complex issues with confidence and precision. When evaluating the Megger FRAX 150 price, it is essential to consider the value of these integrated capabilities, which streamline the testing workflow and reduce the likelihood of human error.

• Highest Accuracy in the Industry: The FRAX 150 delivers exceptional measurement precision, critical for detecting minor deviations in frequency response. This high accuracy ensures that even the smallest mechanical shifts within windings or core structures are identified, providing a reliable basis for condition assessment and decision-making.
• High Dynamic Range: With an extensive dynamic range, the analyzer can effectively test a wide variety of transformer sizes and impedances. This versatility allows utility companies to use a single instrument for diverse assets, from distribution transformers to large power units, ensuring comprehensive coverage across the grid.
• Compliance with International Standards: The FRAX 150 fulfills international standards for SFRA measurements, guaranteeing that test results are consistent and comparable across different locations and operators. This compliance is vital for regulatory audits and for establishing trustworthy baseline data for long-term asset management.
• Advanced Analysis and Decision Support: Built-in PC and touchscreen functionality streamline the user experience, allowing for immediate on-site analysis. The integrated software provides advanced decision support, helping technicians interpret complex data patterns and identify specific fault types without needing post-processing on separate computers.
• Data Import Capabilities: The ability to import data from other FRA test sets enhances the FRAX 150’s utility in mixed-equipment environments. This feature ensures seamless integration into existing workflows, allowing teams to centralize historical data and compare new results against legacy measurements from different manufacturers.
• Continuity Control of Ground Connections: Safety and measurement integrity are paramount. The continuity control feature automatically verifies ground connections before testing begins, preventing setup errors and ensuring that the measured response is solely attributable to the transformer under test, free from external grounding artifacts.

Understanding Sweep Frequency Response Analysis (SFRA)

Sweep Frequency Response Analysis is the underlying technology that makes the Megger FRAX 150 a powerful diagnostic tool. This method involves applying a sweep frequency test signal to one end of a transformer winding while measuring the response at the other end. The resulting transfer function plot reveals the transformer’s natural resonance frequencies. Any mechanical disturbance, such as a bent winding or a displaced core, alters these resonance frequencies, creating a distinct deviation in the fingerprint. For buyers evaluating the Megger FRAX 150, understanding this mechanism highlights the instrument’s ability to detect faults that are invisible to standard electrical tests like insulation resistance or turns ratio measurements.
