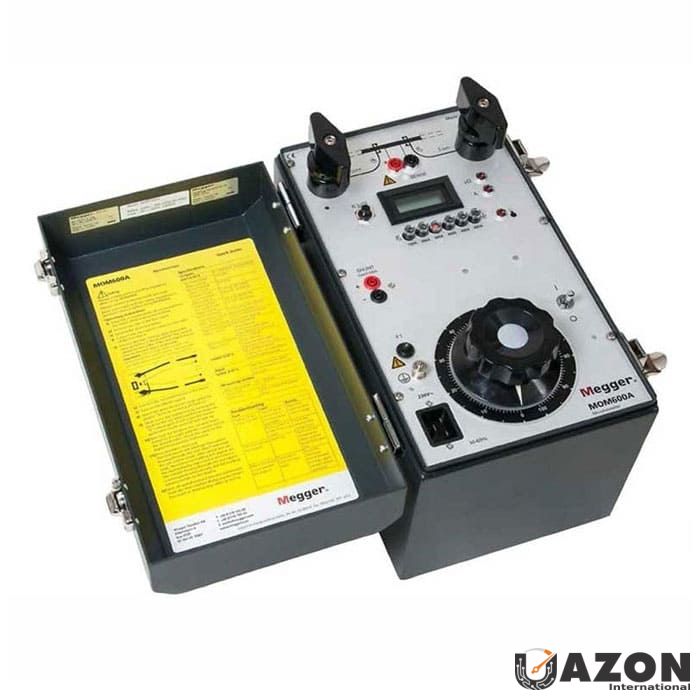

Preventing Overheating in Modern Electrical Networks with the Megger MOM600A
As today's distribution networks are required to carry increasingly heavier loads, the risk of overheating has become a serious concern for facility managers and electrical engineers. One of the most effective ways to mitigate this risk is by checking contact resistances at regular intervals, which detects potential faults before they escalate into dangerous overheating events. Microhmmeters are the essential instruments used to perform these precise measurements on high-voltage breakers, disconnecting switches, knife-contact fuses, bus joints, and line joints. Among the most reliable tools for this purpose is the Megger MOM600A-600 A Micro-Ohmmeter, a device designed to deliver accuracy and durability in demanding environments.
Technical Features and Field Applications of the Megger MOM600A-600 A Micro-Ohmmeter
The Megger MOM600A is engineered specifically for use in high-voltage substations and industrial environments where precision and robustness are non-negotiable. This instrument addresses the critical need for monitoring contact integrity, ensuring that connections remain secure and efficient under heavy operational loads. By utilizing this micro-ohmmeter, technicians can identify degradation early, thereby extending the lifespan of expensive switchgear and minimizing downtime. Below are the detailed technical specifications that define the operational capabilities of this device.
- Temperature Operating Range: The instrument operates reliably from 0°C to +50°C (32°F to +122°F) at 115 V, and from 0°C to +40°C (32°F to +104°F) at 230 V, ensuring functionality across diverse climatic conditions.
- Storage and Transport Conditions: It can be safely stored and transported within a wide temperature range of -40°C to +70°C (-40°F to +158°F), protecting the internal components during extreme weather transit.
- Humidity Tolerance: The device functions effectively in environments with humidity levels between 5% and 95% RH, provided condensation is avoided, making it suitable for both dry and damp industrial settings.
- Compliance and Safety: The instrument carries CE-marking, adhering to EMC standards 2004/108/EC and LVD standards 2006/95/EC, ensuring it meets rigorous European safety and electromagnetic compatibility regulations.
Power Requirements and Protection Mechanisms
Understanding the power requirements and protection features of the Megger MOM600A is vital for safe deployment in high-voltage substations. The device is designed to handle significant electrical loads while maintaining internal safety through advanced circuit protection. This section outlines the electrical specifications that facilitate its operation in various industrial power infrastructures. When considering the Megger MOM600A-600 A Micro-Ohmmeter Price, these robust features contribute significantly to the overall value proposition.
- Mains Voltage Compatibility: The instrument supports dual mains voltage inputs of 115 V and 230 V AC, operating at both 50 Hz and 60 Hz frequencies for global versatility.
- Power Consumption: Maximum power consumption is rated at 4370 VA for the 115 V model and 7360 VA for the 230 V model, providing the necessary current output for low-resistance measurements.
- Circuit Protection: To safeguard the instrument and the user, it is equipped with miniature circuit breakers and thermal cut-outs that prevent overload and overheating of internal components.
Physical Dimensions, Weight, and Cable Specifications
Portability and ergonomic design are crucial for field instruments that must be transported between test sites within industrial complexes or substations. The Megger MOM600A balances a sturdy construction with manageable dimensions, allowing for easy handling without compromising on durability. For engineers looking to Buy Megger MOM600A, understanding the physical footprint and accessory weight is essential for logistics and storage planning. The following details describe the physical attributes and included cabling.
- Instrument Dimensions: The main unit measures 356 x 203 x 241 mm (14" x 8" x 9.5"), compact enough for easy maneuvering in tight substation switchgear rooms.
- Transport Case Dimensions: When packed for travel, the instrument fits into a case measuring 610 x 290 x 360 mm (24.0" x 11.4" x 14.2"), providing robust protection during transit.
