Description
About this model

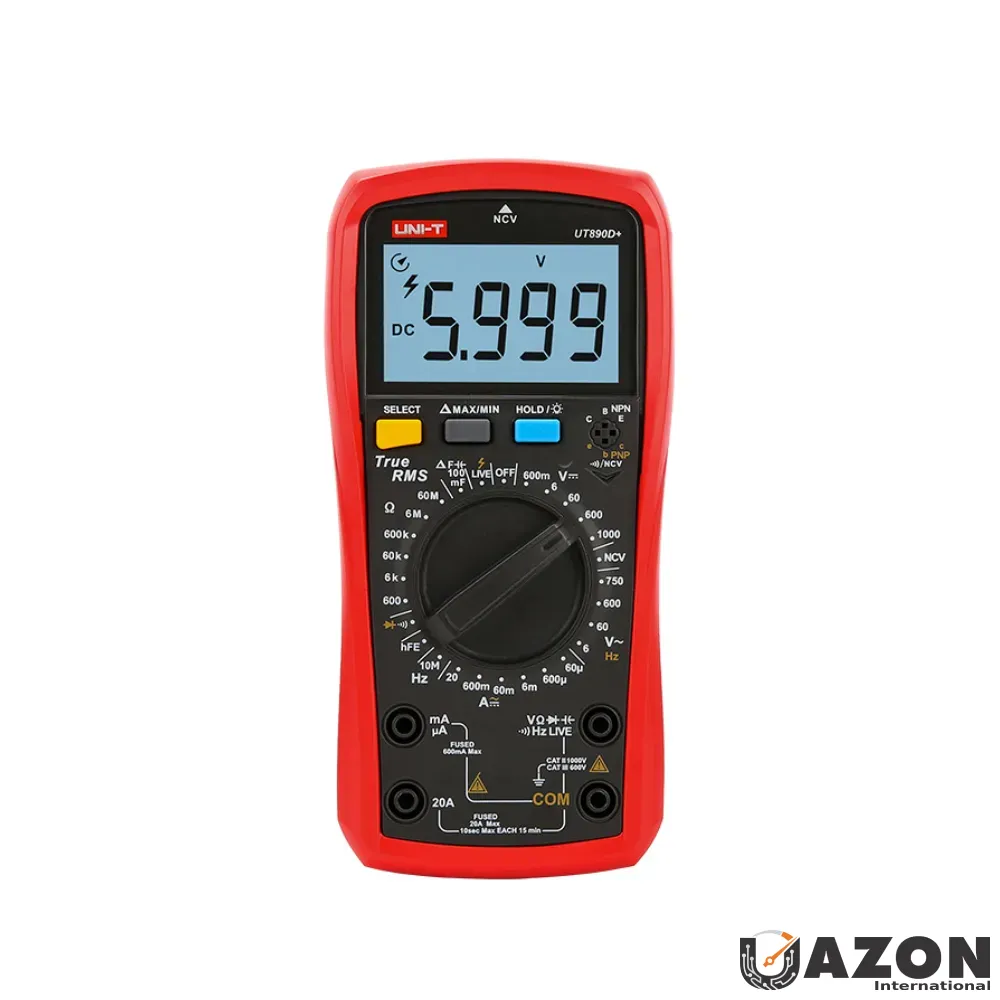

The UT890D PLUS True RMS Digital Multimeters represent the pinnacle of professional electrical measurement technology for electricians, HVAC technicians, electronics engineers, and industrial maintenance professionals across the UAE. This premium digital multimeter features True RMS technology for accurate measurements on non-sinusoidal waveforms, advanced live wire detection capability, and a high-resolution 6000-count display. With comprehensive testing functions including voltage, current, resistance, capacitance, and frequency measurement up to 9.999MHz, plus CAT II 1000V and CAT III 600V safety ratings, the UT890D PLUS delivers exceptional performance for demanding electrical diagnostics in residential, commercial, and industrial environments.
Professional Features of UT890D PLUS Digital Multimeter
True RMS measurement technology ensures precise readings on distorted waveforms from variable frequency drives, inverters, dimmer circuits, and modern electronic loads. Unlike basic average-responding multimeters that produce errors of 40% or more on non-linear loads, the UT890D PLUS calculates authentic root mean square values for professional-grade accuracy. The 6000-count high-resolution display provides superior measurement detail compared to standard 2000-count meters, revealing voltage and current variations that lower-resolution instruments miss entirely.
The exclusive Live wire detection feature sets the UT890D PLUS apart from the standard UT890C model, providing instant identification of energized conductors for enhanced electrical safety. Combined with non-contact voltage detection (NCV) with acousto-optic indication, this dual-layer protection system alerts technicians to dangerous voltages before physical contact. High voltage false detection at 1000Vrms prevents measurement errors that could lead to equipment damage or personal injury.
Comprehensive Measurement Capabilities
DC voltage measurement extends to 1000V with exceptional ±0.5% accuracy, while AC voltage testing reaches 750V. Current measurement spans from microamperes to 20A for both AC and DC, enabling everything from sensitive electronics testing to heavy-duty motor diagnostics. Resistance measurement to 60 megohms supports insulation testing and high-impedance circuit verification. Capacitance testing from 6 nanofarads to 100 millifarads accommodates HVAC capacitor analysis and electronics component evaluation. Frequency measurement to 9.999MHz supports RF work, oscillator testing, and signal generator verification.
Applications for UT890D PLUS True RMS Multimeter
- Industrial electrical maintenance and troubleshooting
- Commercial building electrical system diagnostics
- HVAC equipment testing and capacitor verification
- Automotive electrical system repair and analysis
- Electronics development, prototyping, and repair
- Solar panel installation voltage and current testing
- Motor and pump electrical performance evaluation
- Power distribution panel load analysis
- Generator and UPS system diagnostics
- Building automation system troubleshooting
- Manufacturing equipment electrical testing
- Laboratory precision measurement applications
- Appliance repair and component testing
- Telecommunications equipment diagnostics
Advanced Safety and Convenience Functions
Multiple safety features protect both operator and equipment during electrical testing. Fuse blowing alarm warns when current approaches dangerous levels. Over-current alarm activates at 20A or higher to prevent meter damage. Current mode memory retains AC/DC selection between measurements for streamlined workflow. Low battery indication at 2.5V ensures you never lose power during critical diagnostics. Auto power-off after 15 minutes conserves battery life during field operations.
The 30-second backlight illuminates the display for measurements in electrical panels, under dashboards, and other confined spaces. Data hold freezes readings for convenient recording and documentation. REL (relative mode) establishes reference baselines for comparative measurements. MAX/MIN functions automatically track extreme voltage and current values during monitoring sessions. Manual ranging provides precise control over measurement scales for professional applications.
Technical Specifications UT890D PLUS Multimeter

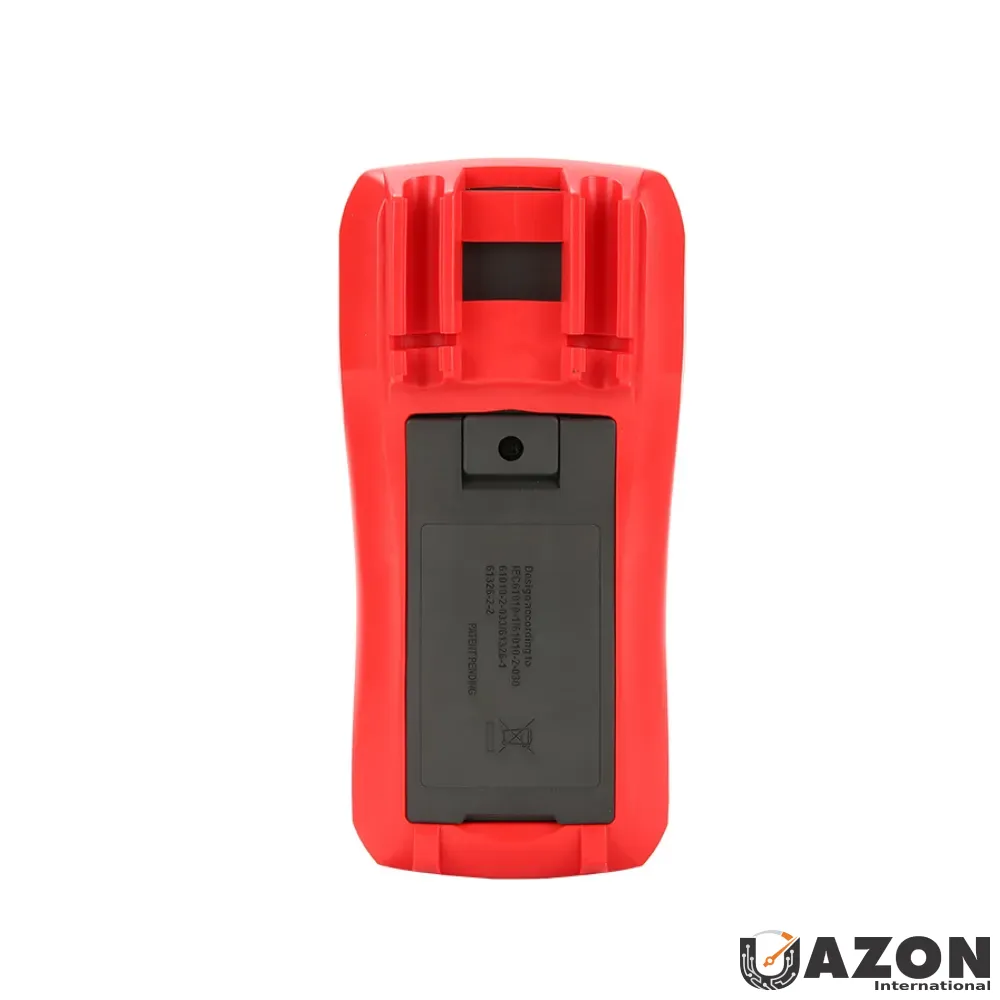

The robust construction measures 183mm x 88mm x 56mm with professional red and grey housing weighing 346g. Two 1.5V AAA batteries provide portable power with efficient energy management. Operating temperature range of 0°C to 40°C accommodates most field conditions. CAT II 1000V and CAT III 600V safety certifications ensure safe operation in demanding electrical environments including distribution panels and industrial installations. Continuity testing with acousto-optic indication enables efficient circuit verification. Diode testing and hFE transistor testing support electronics repair and component evaluation.
Why Purchase UT890D PLUS from UAZON.AE
UAZON.AE supplies genuine UT890D PLUS True RMS Digital Multimeters with complete accessories, comprehensive manual, and full manufacturer warranty throughout Dubai, Abu Dhabi, Sharjah, and all UAE Emirates. Our competitive pricing delivers premium electrical testing equipment at exceptional value for professionals and serious enthusiasts. Fast shipping ensures your multimeter arrives in premium gift box packaging ready for immediate deployment. Expert technical support assists with advanced measurement techniques and safety protocols compliant with UAE electrical standards.
How to Use UT890D PLUS Digital Multimeter
Install two AAA batteries and verify proper operation. Connect test leads to appropriate terminals: COM for common, VΩ for voltage/resistance/frequency, and A for current measurements. For voltage testing, select the voltage function and range, then touch probes to circuit points. For current measurements, break the circuit and insert the meter in series with the load. For resistance testing, ensure circuits are de-energized before connecting probes. Use the Live detection feature to identify energized wires safely. Activate NCV mode for non-contact voltage detection near suspected live conductors. Press HOLD to freeze readings, MAX/MIN to track extremes, and REL for differential measurements. The backlight activates automatically in low-light conditions, providing clear visibility for all measurements.
