NOVOTEST UT-1M Ultrasonic Thickness Gauge Compare

NOVOTEST UT-1M Ultrasonic Thickness Gauge Compare

Store / Material Testing
0.00 AED
In stock
Product Details
Brand: NOVOTEST
Measuring Principle: Normal, B-scan, Control mode
Measuring Range: 0.4 to 1500 mm and more (depending on material and surfaces)
Minimum Substrate Thickness: 0.4 mm
Units: mm, inch
Interface: Device menu, Android smartphone/tablet, Cloud storage/PC, PDF, Excel (CSV)
Power Supply: DC 3V (2 pcs standard batteries AA)
Dimensions: 120x60x25 mm
Display: Monochrome, 2,5 inch, 128*64

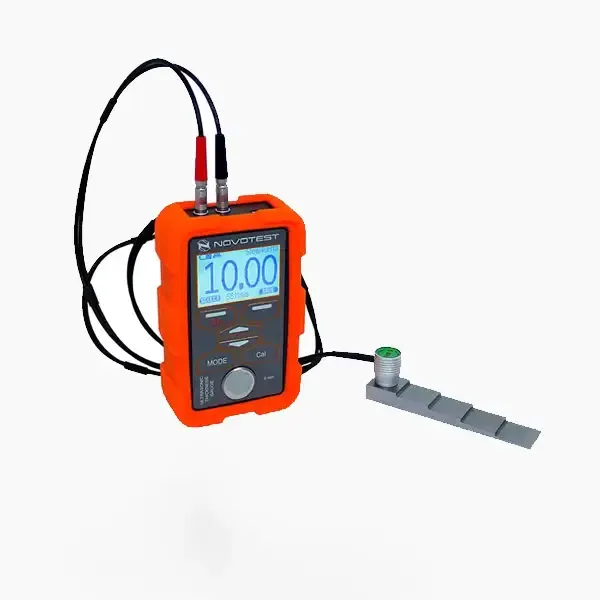

NOVOTEST UT-1M

The NOVOTEST UT-1M is an advanced ultrasonic thickness gauge designed for non-destructive testing of material thickness. This device is widely used in various industries, including manufacturing, construction, and maintenance, to ensure the integrity and safety of materials.

Key Features

  • Ultrasonic Measurement: The UT-1M utilizes ultrasonic waves to measure the thickness of materials. It sends a pulse through the material and measures the time it takes for the echo to return, allowing for precise thickness readings.
  • Wide Measurement Range: This gauge can measure thickness across a range of materials, including metals, plastics, and composites. The typical measurement range is from 0.5 mm to 300 mm, making it versatile for different applications.
  • User-Friendly Interface: The device features a clear LCD display that shows real-time measurements. It also includes simple controls that allow users to easily switch between different measurement modes and settings.
  • Data Storage and Output: The UT-1M can store multiple measurements for later review. It also supports data output to a PC for further analysis or record-keeping, which is essential for quality control processes.
  • Calibration and Accuracy: The device comes with built-in calibration options to ensure accuracy. It conforms to international standards for ultrasonic testing, providing reliable results.

Applications

The NOVOTEST UT-1M is particularly useful in:

  • Quality Control: Ensuring that materials meet specified thickness requirements.
  • Preventive Maintenance: Monitoring the condition of pipes, tanks, and structural components.
  • Manufacturing Processes: Verifying material thickness during production to maintain quality standards.

The NOVOTEST UT-1M ultrasonic thickness gauge is a reliable and efficient tool for non-destructive testing of material thickness. Its user-friendly design, wide measurement range, and data management capabilities make it suitable for various industrial applications. When compared to hardness testers like the NOVOTEST TS-BRV-C, it serves a different purpose but complements overall material testing strategies by providing critical data on material integrity.

NOVOTEST UT-1M Specifications

Measuring thicknesses range on steel, mm: 0.4 to 1500 mm and more (depending on material and surfaces)
Probe 10MHz – P112-10-2×3 0.4-15
Probe 10MHz – P112-10-6 / 2 0.45-300
Probe 5MHz – P112-5-10 / 2 0.8-500
Probe 2,5MHz – P112-2,5-12 / 2 2.5-1000
Probe 2MHz – P112-2-20 / 2 3-1200
Probe 1,25MHz – P112-1.25-20 / 2 4-1500
Probe dimensions, mm:
Probe 10MHz – P112-10-2×3 4×9×60
Probe 10MHz – P112-10-6 / 2 D12×15
Probe 5MHz – P112-5-10 / 2 D17×20
Probe 2,5MHz – P112-2,5-12 / 2 D20×21
Probe 2MHz – P112-2-20 / 2 D30×28
Probe 1,25MHz – P112-1.25-20 / 2 D30×35
Probe dimensions, mm:
Probe 10MHz – P112-10-2×3 2×7/2×3
Probe 10MHz – P112-10-6 / 2 D9/D6
Probe 5MHz – P112-5-10 / 2 D14/D10
Probe 2,5MHz – P112-2,5-12 / 2 D16/D12
Probe 2MHz – P112-2-20 / 2 D24/D20
Probe 1,25MHz – P112-1.25-20 / 2 D24/D20
Optional probes:
5MHz high-temperature probe (echo) 10/2 range 0,8 – 300 mm, surface temperature up to 250 °С/482 °F
2,5MHz probe (echo-echo) 12/2 for through coating range 6 – 30 mm, coating thickness range – up to 1 mm
5MHz probe (echo-echo) 10/2 for through coating range 3,5 – 26 mm, coating thickness range – up to 1 mm
10MHz probe (echo-echo) 6/2 for through coating range 2 – 12 mm, coating thickness range – up to 0,6 mm
5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable range 3,5 – 26 mm, coating thickness range – up to 1 mm
5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable range 3,5 – 26 mm, coating thickness range – up to 1 mm
5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable range 3,5 – 26 mm, coating thickness range – up to 1 mm
Compatible probe types Ultrasonic, dual-element, longitudinal waves
(including probes of other manufacturers)
Compatibility with Active EMAT Transducer EMAT-A1 No
Probe calibrations (V-path, TVG, etc.) factory for NOVOTEST probes, users for probes of other manufacturers
Probe cable connector type 2 Lemo 00
Probe cable length, m 1,2
Measurement scales mm (m/s), inch (inch/μs)
Measurement resolution, mm/inch 0.01/0.001, (0.01/0.0001 by request)
Basic measurement accuracy, mm ± (0,01 T+0.05), (*For range 0.8 – 300 mm)
Gain range, dB ± 20
Response time, with no more than, s 1
Setting range of the ultrasonic velocity, m / s 1000-17000
Preset velocities for materials Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon, ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User

General comparative chart of all models NOVOTEST ultrasonic thickness gauges (without UT-3M-EMAT)

Model name UT-2A UT-1M UT-1M-IP UT-1M-ST
Measuring thicknesses range for steel, mm 0,4 – 1500 and more, depending on material and surfaces 0,45 – 1500 and more, depending on material and surfaces
Resolution, mm 0,01
Basic measurement accuracy, mm ± (0,01*T+0,05) (*For range 0.8 – 300 mm)
Basic probes / range for steel 2,5 MHz / 2,5 – 1000 mm, 5 MHz / 0,8 – 500 mm, 10 MHz / 0,45 – 300 mm
Optional probes / range for steel 1,25 MHz / 4 – 1500 mm, 2 MHz / 3 – 1200 mm, High-temperature 5MHz (up to 250 °С) / 0,8 – 300 mm, Echo-Echo 5MHz for through-coating measurements / 3,5 – 26 mm
Compatibility with Active EMAT Transducer EMAT-A1 Yes No
Compatible probe types Dual-element, Single-element Dual-element
Operating modes Normal, A-scan, B-scan, Manual mode, Control mode Normal, B-scan, Control mode
Measurement methods Echo, Echo-Echo, Peak-Peak, Zero-crossing Echo, Echo-Echo
Measurement units mm, inch
Display Color, 3,5 inch, 480*320 Monochrome, 2,5 inch, 128*64
Menu languages English, Ukrainian, Russian, (other languages optional) English, Spanish, Ukrainian, Russian, (other languages optional)
Body type/Dust and moisture protection level Metal, durable /Standard for shop and field operation Plastic, with shockproof silicone case / Standard for shop and field operation Plastic, sealed /High – optionally water immersion up to 1m deep for 30 min Metal, durable /Standard for shop and field operation
Saving of the settings for different probes Yes
Compatibility with probes of other manufacturers Yes
V-path correction and TVG adjusting for the user’s probes Yes
Storage of measurement results 7000 and more (Limited only by the memory card) 128 128 128
PC cable connection (via www.novotest.info) Yes
Smartphone Wireless connection (via NOVOTEST Lab) No Optional Optional No
Charger type Any USB socket (charger adapter, PC, power bank, etc.) External charger for batteries Any USB socket (charger adapter, PC, power bank, etc.) External charger for batteries
Battery Built-in Li-ion 2pcs standard АА batteries 3pcs standard АА batteries 2pcs standard АА batteries
Electronic unit weight, no more, kg 0,5 0,25 0,35 0,35
Dimensions (L x W x H), mm 165x90x50 122х76х37 160х90х28 130х90х40
Minimum time of continuous work, h 10 25 25 25
Operating temperature range, ° C -20 to +40
